EELMicro Stealth Ultra-High Resolution Hydrophone Array

SHARE

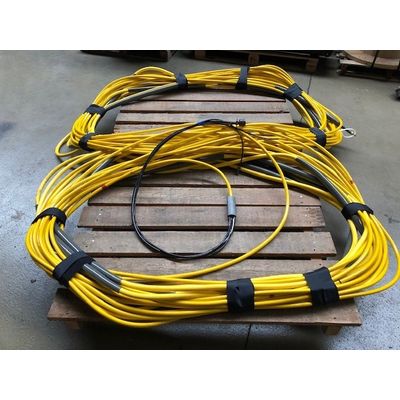

The Micro Stealth ultra-high resolution hydrophone array has been designed for the collection of ultra-high resolution (UHR) and ultrahigh resolution, three-dimensional (UHR3D) seismic data for geophysical surveys for wind farms and other renewable energy sites, both offshore and near shore. This ultra-high resolution hydrophone array features a neutrally buoyant continuous cable design and stealth noise cancelling PVDF hydrophones. The design is simple and robust, and ideally suited to shallow tow depths. We also have 48- and 24-channel mini streamers available for hire. Plus, electric hydrophone array winches.

Most popular related searches

Key Data for Micro Stealth Ultra-High Resolution Hydrophone Array

  • Lead-in length: 120m
  • Connectors: Bendix 61S (channels) and Bendix PT06J-4P (power and communication)
  • Groups: 24
  • Hydrophones: 1 per group
  • Group intervals: 2m
  • Sensitivity: 20V per bar
  • Bandwidth: 35Hz to 10kHz
  • Communication coils: Head and tail
  • Stress member: Centre 230kg working
  • Maximum operating depth: 0.03M and neutrally buoyant in fresh water
