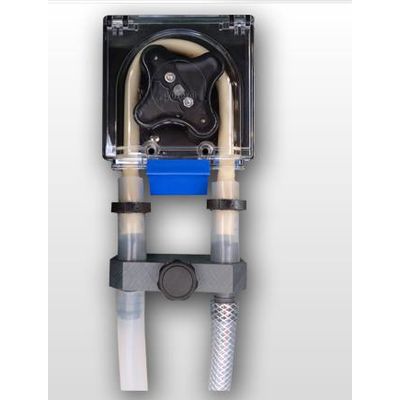

Efcon - Peristaltic Wastewater Sampler
Efcon Peristaltic Sampler are equipped with reliable basic hardware and standard electronics. Although the design is focussed on long term reliable sampling with minimum drop out the maintenance frequency at permanent use is absolutely higher than a Vacuum Sampler. The peristaltic sampler can take samples from open channels or wires and has a with DN 12 or DN 9 mm tubing. Commonly used on wall mounted Carrybox Enclosures and portable samplers (released end of 2015).
Mount the end (inlet) of the suction hose on a fixed representative turbulent point to sample homogeneous wastewater. Ensure the suction hose is always emerged in the wastewater / medium.
Note!
Not allowed for billing purposes in the Netherlands!
A peristaltic sampler needs regular cleaning of the sampling hose and water level detector.
Keep in mind:
- Maximum suction height: 8 meter
- Maximum suction length: 30 meter
The contact level indicator functions on a minimum wastewater conductivety of 50 m/s. When the conductivety drops to deep (in case of demi or pure rain water), an optional capacity switch can be added to create a full functioning level detection system.
SERVICE
Efcon® Water offers full support with annual service and on site support in The Netherlands & Belgium. Throughout Europe we support several specialised distributers. Spare parts are in stock at our distributers but can also be shipped global with UPS, DHL, FedEx etc.
Application
- Treated Effluent and Research Equipment (portable)
Advantages
- Electric actuators
- Above the ground mounting
- Well known principle
Matching Enclosures
- Efconomy Samplers
- Industrial Samplers
- Custom Made Projects
- Carrybox Samplers
Disadvantages
- Wearing out of tubing due to moving parts
- Maintenance frequency
Conditions
- Maximum suction height: 8 meter
- Maximum suction length: 30 meter
Maintenance
- Cleaning of the hose
- Cleaning of the water level detector
