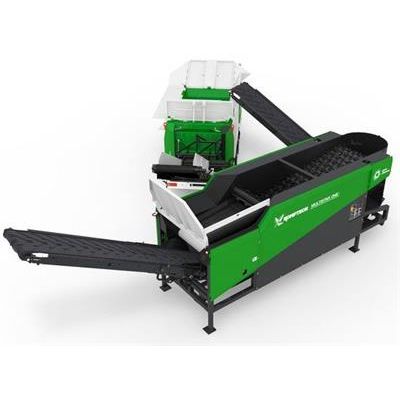

Komptech Multistar - Model One -Efficient Biomass Processing with Multistar One: Overlength Return Feature
The new Multistar One makes waste wood and biomass processing highly efficient. An upstream Crambo handles the shredding, and the new One then takes care of separating out a defined useful fraction while returning overlengths to the shredder. With a feed hopper for precise material transfer to the generously dimensioned screen deck, a discharge conveyor with 4 m cone height and a return conveyor that can pivot through 220°, the One is ready to deliver up to 200 m³/h throughput. The machine is built on a hook-lift frame, making it compact. The conveyors are designed for flexible positioning, while the low-wear screen deck and electric power ensure top economy. Performance: up to 25 kW (Mains). Throughput: up to 200 m³/h. Screen decks: 1. Mobility: Hooklift platform.
More Business
Optimization of waste wood and biomass shredding for the lowest operating costs
Innovation
Efficient electric drive with power supply from the grid or the Crambo shredder
Komptech Plus
Production of standardized useful fractions by precise separation
User Friendly
Excellent maintenance access through service doors and easily removable flexible cladding
Controlled Transfer
The shredder discharge conveyor feeds material to the 2.5 cubic metre capacity feed hopper of the One. There, a scraper conveyor ensures controlled material transfer to the screen deck.
Proven Layout
The One has the proven structure and high-quality components of the Multistar series, with a tough box frame, flexible screening stars and Cleanstar cleaning system, screen deck drive by electric motors with frequency converter speed control, and much more.
Hook Lift Platform for Mobility
Built on a hook lift module, the machine has small dimensions and the requisite mobility for service providers or multi-site use.
Flexible Energy Supply
The current for the electric motors can come either directly from the grid or from a combination of additional hydraulic pump on the shredder and hydraulic generator on the Multistar One.
A Different Kind of Cladding
Along with two maintenance doors, tough truck-grade tarp material protects components from dirt while saving weight and affording easy access.
High Screening Performance
A 6 m² screen deck provides efficient, precise separation. Depending on the application and setup, throughput can be up to 200 cubic metres per hour
Sure Material Return
The screen overflow falls through a chute to the return conveyor. The conveyor swivels through 220° for high setup flexibility. With a cone height up to 4 metres, material return to any Komptech shredder is problem-free.
Minimal Space Requirements
The One offers high operator convenience while space requirements are minimal through intelligent machine design.
