Green Machines - Model 400 Series -Efficient Street Cleaning and Refuse Disposal Machine
The 400 series from Green Machines is designed to tackle the most demanding outdoor cleaning tasks with robust quality that sustains daily operational stress. Notably featuring the 414 S2D, 414 RS with an extendable seat, 424 TR with two-wheeled suspension for comfort, and the 424 HS high-speed variant, these models offer easy operation while effectively reducing waste volume and accessing hard-to-reach spots. The series gained remarkable attention when it featured in Star Wars: Episode I - The Phantom Menace, symbolizing its futuristic appeal at launch.
The first 400-series model is also famous in a galaxy far, far away. When it was introduced to the market it was so futuristic that it even played its own role in Star Wars: Episode I – The Phantom Menace.
The 400 series are perfectly suited for cleaning the most exacting outdoor areas and can withstand maximum strain in everyday operation.
1 SERIES, 4 MACHINES:

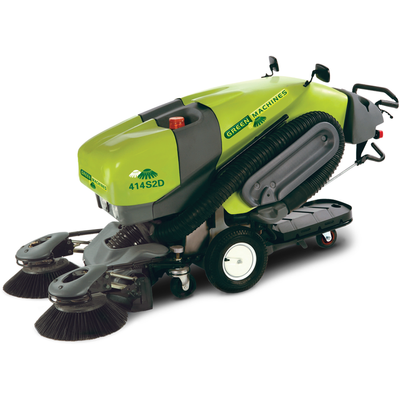

- 414 S2D – Standard Machine
- 414 RS – Machine with extendable seat
- 424 TR – Machine with comfortable two-wheeled suspension seat
- 424 HS – High Speed Machine with comfortable two-wheeled suspension seat
Machine dimension
- Width :
- 414 S2D: 1140 mm
- 414 RS: 1140 mm
- 424 TR: 1140 mm
- 424 HS: 1140 mm
- 14 S2D: 44 7/8 in
- 414 RS: 44 7/8 in
- 424 TR: 44 7/8 in
- 424 HS: 44 7/8 in
- Length :
- 414 S2D: 2510 mm
- 414 RS: 2997 mm
- 424 TR: 3550 mm
- 424 HS: 3550 mm :
- 414 S2D: 98 12/16 in
- 414 RS: 117 63/64 in
- 424 TR: 139 49/64 in
- 424 HS: 139 49/64 in
- Height :
- 414 S2D: 1143 mm
- 414 RS: 1243 mm
- 424 TR: 1397 mm
- 1945 mm (with Cab)
- 424 HS: 1397 mm
- 1945 mm (with Cab) :
- 414 S2D: 45 in
- 414 RS: 48 15/16 in
- 424 TR: 55 in
- 76 59/64 in (with Cab)
- 424 HS: 55 in
- 76 59/64 in (with Cab)
- Mass :
- 414 S2D: 400 kg
- 414 RS: 440 kg
- 424 TR: 520 kg
- 424 HS: 545 kg :
- 414 S2D: 882 lbs
- 414 RS: 970 lbs
- 424 TR: 1146 lbs
- 424 HS: 1202 lbs
- Turning Circle (between walls) :
- 414 S2D: 1350 mm
- 414 RS: 1350 mm
- 424 TR: 2400 mm
- 424 HS: 2400 mm :
- 414 S2D: 53 5/32 in
- 414 RS: 53 5/32 in
- 424 TR: 94 31/64 in
- 424 HS: 94 31/64 in
