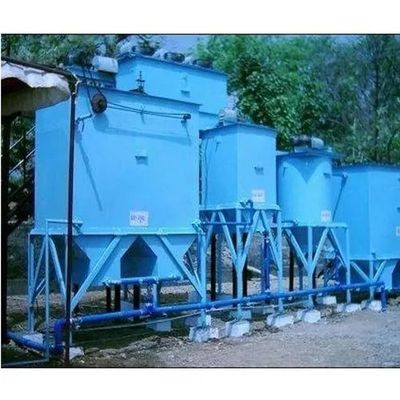

Nicoles - Effluent Treatment And Wastewater Treatment Plant

Minimum Order Quantity: 1 Piece
Installation Type: Prefabricated
Capacity (KLD): 500 KLD
Application Industry: Pharmaceutical & Chemicals
Inlet Flow Rate(m3/day or m3/hr): 500 m3/day
Air Blower Count: 2 Blowers
Material Of Construction: Mild Steel
Treatment Technique: Fluidized Aerated Reactor
Water Source: Industrial Effluent
Control Module: Available
Automation Grade: Automatic
Voltage: 380-440 V
Deliver Type: PAN India
Frequency: 50 Hz
Warranty: 1 Year
I Deal In: New Only
Treatment Stages: Secondary Treatment, Preliminary Treatment, Primary Treatment
Country of Origin: Made in India

• Rust proof
• Longer service life
• Highly efficient
• Precise design

Effluent treatment plant, also known as ETP is a waste water treatment process (WWTP) that is used to treat wastewater. It`s mostly used in industries like pharmaceuticals, textiles, and chemicals where extreme water contamination is a possibility. ETP plays a significant role in the treatment of industrial waste water as well as domestic sewage. Organic matter, inorganic matter, heavy metals, oil & grease, suspended particles, and other contaminants are treated in the wastewater treatment process of an ETP plant. Chemical treatment, biological treatment, a combination of chemical and biological treatment, and thermal treatment are the several types of wastewater treatment plants.

How does ETP Plant Work?

The conceptual approach of the treatment includes the removal of suspended particles, dissolved organic matters and handling of sludge for disposal. Different processes involved are:

EQUALISATION: The equalization tank`s purpose is to balance the raw effluent from various processing units. The wastewater is collected in an existing mixed effluent tank and pumped to an existing aeration tank, which also functions as an equalisation tank. The floating aerator is used to homogenise the effluent before it is pumped to the neutralization tank for treatment.

pH CONTROL: The pH value of effluent should be between 5.5 and 9.0, according to the Bureau of Indian Standards (BIS).pH neutralization is used to modify the pH of wastewater.

For waste that is acidic (low pH): Bases are used to modify the pH of a solution.

In the case of alkali waste (high pH): Acids are used to modify the pH of a solution.

COAGULATION: Coagulation is a technique that involves adding liquid aluminium sulphate to untreated water. This causes tiny dirt particles to stick together after mixing. This collection of particles combines to generate larger, heavier particles that are easily removed through settling and filtration.

SEDIMENTATION:  Water travels slowly in this process, causing the heavy particles to settle to the bottom. Sludge is the term for the particles that gather at the bottom of a container.

FILTRATION: Filtration is the process of passing water through a filter that removes particulates. The filters are made out of sand and gravel layers. Backwashing is required to clean these filters on a regular basis.

DISINFECTION: Before entering the distribution system, water is disinfected. Chlorine is used to disinfect and decontaminate water.

SLUDGE DRYING: Sedimentation collects and settles down solids, which are then transported to drying beds.  When the sludge thickness reaches around 300 mm, the sludge charging should be stopped, and the bed should be segregated to allow natural evaporation to dry it off. This takes approximately ten days.

We also deal in SBR wastewater treatment plant,

Chemical wastewater treatment plant,

biological wastewater treatment plant,

Membrane bioreactor for wastewater treatment,

Municipal Wastewater Treatment Plant,

pharmaceutical wastewater treatment plant,

asp wastewater treatment,

Physico-chemical treatment of wastewater,

Sludge Treatment Plant.
