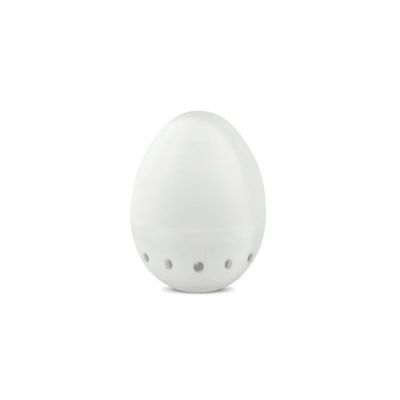

MadgeTech - Model RH -Egg Shaped Temperature Data Logger
MadgeTechs EggTemp-RH data logger is specifically designed to measure and record the humidity and temperature of eggs during shipping, storage and incubation. The data logger thermally responds to an environment the same way a real egg does, simulating the humidity and temperature experience of the actual product. The EggTemp-RH can measure 0 %RH to 95 %RH and up to +60 °C (+140 °F). It has a user replaceable battery that typically lasts up to 1 year. The nonvolatile memory can hold up to 32,767 readings and will retain data even if the battery becomes discharged. MadgeTechs data logger software offers an easy way to analyze data. Data can be viewed in Celsius or Fahrenheit, and in graph, summary or data formats. For further analysis, data can also be exported to Excel.
TEMPERATURE
- Temperature Sensor Internal semiconductor
- Temperature Range 0 to +60 °C (+32 °F to +140 °F)
- Temperature Resolution 0.1 °C (0.18 °F)
- Temperature Calibrated Accuracy ±0.5 °C
HUMIDITY
- Humidity Sensor Internal semiconductor
- Humidity Range 0 %RH to 95 %RH
- Humidity Resolution 0.5 %RH
- Humidity Calibrated Accuracy ±3.0 %RH
- RH Units %RH, dew pt., water vapor, concentration (mg/hl)
GENERAL
- Memory 16,383/channel
- Reading Rate 1 reading every 2 seconds up to 1 reading every 12 hours
- Baud Rate 38,400
- LED Indicators Red & Green
- Battery Life 1 year
- Material Enclosure: HDPE
- Logger: Stainless Steel
- Dimensions 2.25 in x 1.68 in dia. (57.15 mm x 42.67 mm)
- IP Rating IP30
- Operating Environment 0 °C to +60 °C (+32 °F to +140 °F), 0 %RH to 95 %RH non-condensing
- Required Interface Package IFC102
- Weight LBS
