EIW - Model CC Series -Chamber Construction Combination Silencers
CC Series Combination Silencers are designed for quick assembly of blower packages and provides maximum silencing on blower intake and discharge for blowers operating below transition speed. This is a two in one type design for blowers having horizontal air flow in which both intake and discharge silencers are combined and designed into a single silencer together with blower and motor base to form an integral part. This design facilitates easy installation and reduces labor and overall assembly costs. The silencer consists of a multi-chamber, multi-tube arrangement which properly eliminates destructive pulsations. The standard construction is heavy duty all welded carbon steel sheet and plates.
The silencer connection at blower intake and discharge are plain pipe which enables easy slip on type flex connecter fitting. Custom designs available to suit specific requirements. The external surfaces are rust inhibitive primer coated. The optional features include special flanges, couplings for relief valve installation, tappings for pressure gauge, special material and special paint. For selection, sizing, and pressure drop calculations, please see our reference catalogue 1.
- up to 3 1/2” size - Male thread nipples
- 4” & 5” sizes - optional - male thread nipples or flanges
- 6” & above - 125 lbs. ANSI flange drilling

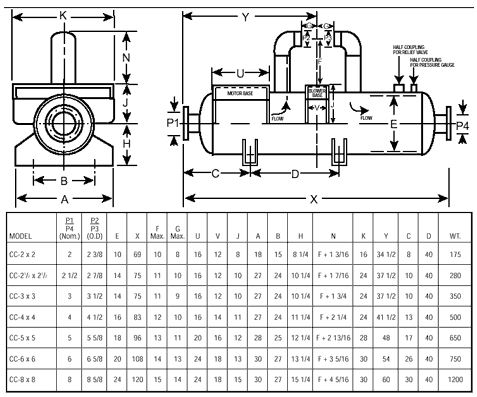

- Dimensions and weights are approximate and may change slightly with production models
- Dimension in inches
- Weight in lbs.
- Larger sizes are available on request
