- AISI 316L stainless steel chamber.
- Chamber range from 200 to 6.800 liters, but loading capacity is fully customizable, according to customer’s need.
- Chamber internal surface is mechanically polished and complies with rigorous pharmaceutical standards, with a roughness Ra <0,4 μm.
- 6 PT100 RTD temperature sensors to monitor chamber and product temperature (3 flexible, 2 fixed + 1 located in the door-chamber jacket).
- Two doors with hinged opening systems to cope with available space in the smartest possible way (unloading side comes with semi-automatic door when chute is installed).
Fedegari Autoclavi SpA
Elastomeric Closures Treatment

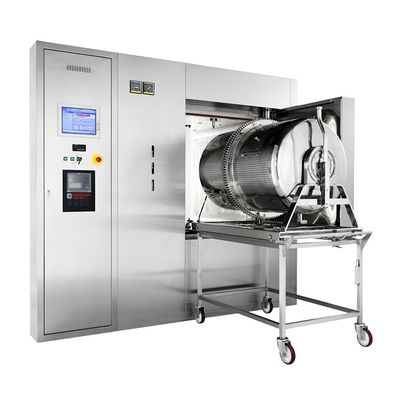

Thanks to a wide experience in the pharmaceutical industry, Fedegari has developed a special sterilizer addressed to elastomeric closures treatment. This process equipment can perform washing, rinsing, siliconizing, sterilizing, drying and automatic unloading of stoppers in a sterile area. All these processes are managed by Thema4 process controller. The stopper treatment autoclave uses a drum with a special magnetic coupling, which guarantees more space in the chamber. As for Fedegari washer sterilizer (FOWS) this is a dual-purpose unit: when is not running as a stopper treatment it can be used as a normal moist-heat sterilizer.
Most popular related searches
saturated steam sterilizer
RTD temperature sensor
steam sterilizer
steam sterilization
temperature sensor
Pt100 temperature sensor
magnetic drum
RTD sensor
autoclave treatment
equipment wash
- Dual-purpose unit: saturated steam sterilizer or elastomeric stopper processing.
- Double option for unloading in sterile area.
- Rotating drum with magnetic coupling: no obstruction in the chamber.
- Stopper washing, siliconizing and sterilizing.
- Solids material sterilization.
- Porous material sterilization.
- Vial sterilization.
