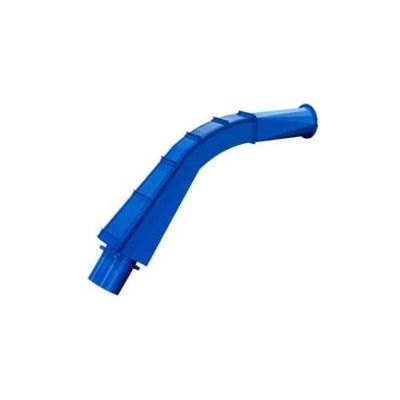

Jeffrey Rader - Model Mark III -Elbow for Pneumatic Conveying Systems
The Jeffrey Rader Mark III Elbow for pneumatic conveyor applications reduces wear, lowers energy consumption and helps eliminate fiber damage. The Mark III flat back elbow is specially designed to reduce energy consumption, reduce wear and help eliminate fiber damage. Material moves smoothly through the elbow without bouncing. First at the impact area, then guided as it changes direction and discharges at the center of the downstream pipe where air velocity is maximum.
Beacuse contact time between materials and elbow is reduced, so is friction, considerably reducing material damage. The wear resistant elbow back is easily replaced when and if maintenance is necessary.
One of the major advantages of a pneumatic system is that material can be carried up, over and around buildings or obstructions. To change direction effectively, material must flow smoothly and efficiently.
A Rader Mark III Elbow accomplishes this task while requiring less power and developing less wear. The standard replaceable back is made of wear resistant AR plate. R-35 cast segments are available for abrasive applications. Available angles: 10, 15, 30, 45, and 60 degress.
