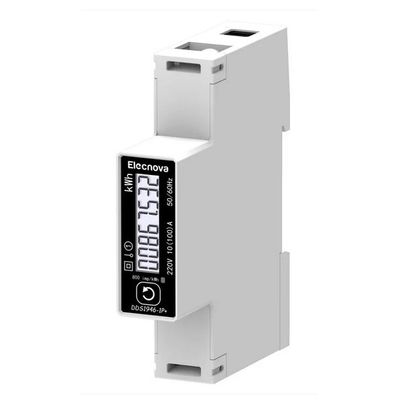

Elecnova - Model DDS1946-1P+ -Single Phase Direct Connected Meter

SHARE

DDS1946-1P+ Single Phase direct connected 100A DIN Mounted kWH Meter with Pulse/RS485. The DDS1946-1P+ Single Phase direct connected 100A DIN Mounted kWH Meter offers exceptional performance while occupying minimal space:

Most popular related searches
electric vehicle
face protection
RoHS compliance
RoHS
RoHS certification

Electrical:

  • Compatible with single-phase systems at 230V, 50/60Hz
  • Direct series connection
  • Supports a current range from 0.04 to 100A
  • Active energy measurement with accuracy class 1

Physical:

  • DIN rail mounted
  • Compact housing with a width of just 1 module (18 mm)
  • Sealable terminal covers for added security
  • IP54-rated front face for protection against dust and splashes

Communication:

  • Fully programmable RS485 Modbus port, allowing customisation of parity, speed, and frame settings

Anti Tamper

  • Sealable terminal covers to prevent electric shocks or tampering

Standards and Certifications

  • CE, RoHS, REACh compliant
  • IEC61000-4-2/3/4/5/6/8/11
  • IEC61010-1
  • IEC62053-22
  • IEC61557-12

DDS1946-1P+ Single Phase DIN Mounted kWH Meter  provides comprehensive measurement of key electrical parameters for detailed circuit analysis, including:

  • Active (kWh) and reactive (kVArh) , Import & Export
  • Voltage and current
  • Active, reactive, and apparent power
  • Power factor
  • Frequency
  • Demand

The DDS1946-1P+ Single Phase DIN Mounted kWH Meter is perfect for Electric vehicle ,photovoltaic and wind applications, featuring separate modbus registers for imported and exported  energy.
