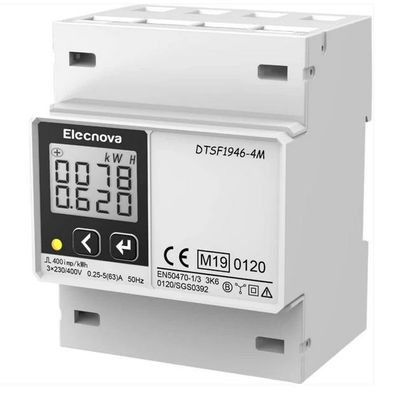

Elecnova - Model DTS1946-4M MID -Three Phase Direct Connected Meter
FromElecnova Europe
DTS1946-4M MID Approved Three Phase direct connected 63A DIN Mounted kWH Meter Pulse/RS485.
Most popular related searches
Anti Tamper
- Sealable terminal covers to prevent electric shocks or tampering
Standards and Certifications
- CE, RoHS, REACh compliant
- MID Approved B & D for billing applications
- IEC61000-4-2/3/4/5/6/8/11,
- IEC61010-1
- IEC62052-23
- IEC62053-22
- IEC61557-12
- EN50470-3
The DTS1946-4M MID Approved Three Phase direct connected 63A DIN Mounted kWH Meter offers exceptional performance while occupying minimal space:
Electrical:
- Compatible with single-phase systems at 230V, 50/60Hz
- Direct series connection
- Supports a current range from 0.02 to 63A
- Active energy measurement accuracy class 0.5S, or Class B according to MID.
Physical:
- DIN rail mounted
- Compact housing with a width of just 4 modules (72 mm)
- Sealable terminal covers for added security
- IP54-rated front face for protection against dust and splashes
Communication:
- Fully programmable RS485 Modbus port, allowing customisation of parity, speed, and frame settings
DTS1946-4M Three Phase DIN Mounted kWH Meter provides comprehensive measurement of key electrical parameters for detailed circuit analysis, including:
- active and reactive energies, imported and exported
- voltage
- current
- active, reactive and apparent powers
- power factor
- frequency
- demand
The DTS1946-4M Single Phase DIN Mounted kWH Meter is perfect for Electric vehicle photovoltaic and wind applications, featuring separate modbus registers for imported and exported energy.
