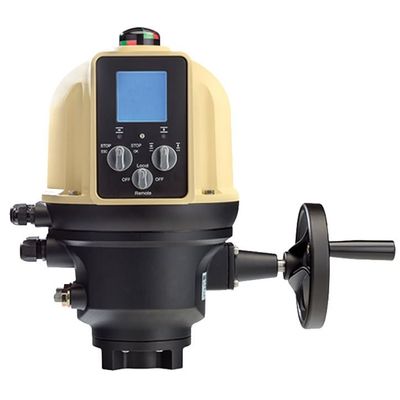

RWV - Model Cutter-MOD -Electric Actuator for Butterfly Valve

Torque range: 443 – 4425 in-lb. Modulating control. Large LCD screen. 2 adjustable limit switches. Electric connections 2 x 1/2″ NPT. Enclosure protection: NEMA 4X. CSA standard certified. 115/120 VAC, 50/60Hz supply or 24 VDC supply.

Most popular related searches

electric actuator butterfly valve

electric actuator valve

epoxy coating

actuated valve

electric valve

Cast alluminum, Epoxy powder coated
ISO 5211 connection
Torque range: 443 - 4425 inlb
Manual override handwheel
Travel 90° (travel time: 13 - 60 seconds)
Electric connections 2 x ½" NPT
Automatic declutch
Self-locking gear
Large LCD screen
Enclosure protection NEMA 4X
CSA standard certified

Modulating control
Position reading on the output shaft
Position sensor: absolute encoder (Hall effect)
Torque limiter (for CUTAQ30 and CUTAQ50)
Motor duty rating: S4-50%. Up to 1200 starts per hour at peak of operation

Available in the following versions:

115/120 VAC 50/60 Hz supply
24 VDC supply

Working temperature: -4°F - +140°F
