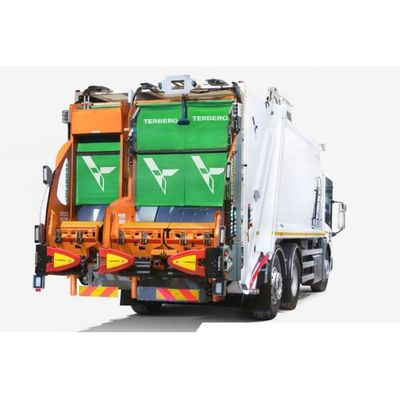

Terberg - Model OmniDEL Triple (E) -Electric Automatic Triple Bin Lift

FromTerberg Machines B.V.

SHARE

The OmniDEL Triple Electric is a low voltage, triple electric bin lift based on a proven design offering robust build, safe operation & minimal maintenance. The OmniDEL Triple Electric shares many of its mechanical design components, efficiency saving features and safety enhancing benefits with the standard OmniDEL Triple but requires only 24v chassis electrical power for operation.

Most popular related searches

bin lifting system

wheeled container

automatic bin lift

environmental performance

safety regulations

The OmniDEL Triple Electric has been proven to save between 8 to 14% in the fuel used on normal RCV collection rounds, depending on driver behaviour, bin to bin distance, distance to tip and other variables.

Environmentally friendly performance comes as standard and the lift is designed to be compatible with future developments in electric & hybrid RCV technologies

Practically silent operation is possible with the OmniDEL Triple Electric producing less than 57 dB(A) of noise, it can even operate without the engine running.

Application : Domestic & Mixed
Lift Config : Split Triple Low Level
Mode : Auto
Auto Gather* : YES
RPD¹ : YES
4-wheel container recognition : YES (twin side)
Diagnostic display : YES
N1 Switch : Sonar
Shake function : Sonar Sensor Anti-Spillage
TW&ID Prep² : Option
Single Point Greasing System
YES : CANbus output
Option : PCDC³
Option : Containers
Single Side EN840.1 Twin Side EN840.1 EN840.2 EN840.3
DIN Arms : NO
Bammens Arms : NO
Paladin Containers : NO
Lifting Capacity (kg) : 100 split 500 trade
Total weight (kg) : 845
Power : Electric
Electrical Connection to body : 16-pin / 24v DC
Chassis battery requirement : 175Ah min., ideal 245Ah
Chassis alternator requirement : Req. 20A spare capacity. Min 75A, 100A recommended
Ingress Protection rating : IP68 & IP69K
Cycle Time (secs) : Auto=6 Man=12
Noise (dbA) : <57
Safety : CE Machinery Directive, EN1501.1 & EN1501.5
Painted finish : Customer Specification
