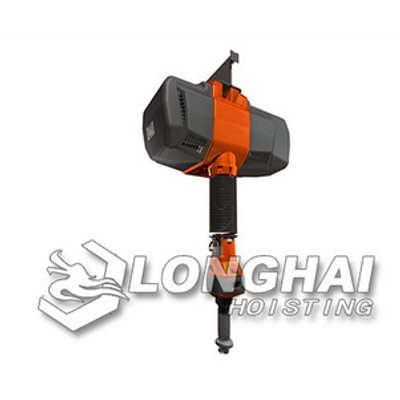

Longhai - Model LS-IL -Electric Balancer
Controlled by a processor, LS-IL Electric Balancer consists of servo motor, servo driver, weighing sensor and limit switch, and serves as a materials handling device that accords with human engineering. Electric Balancer is characterized by easy operation, high precision, intelligentization, speed controllability, safety and reliability, etc. Electric Balancer can maximize production efficiency and minimize the industrial injury risk of operators.
Most popular related searches
materials handling system
industrial injury
photoelectric sensor
lifting device
drilling tool
servo sensor
electrical characterization
drilling industry

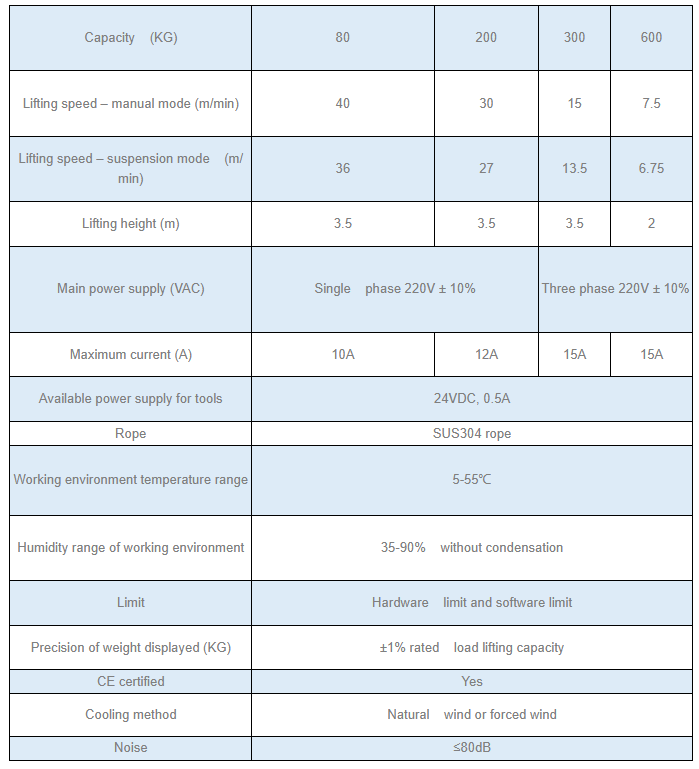

- Capacity: 80–600 KG
- Fast speed: up to 40 m/min
- Strong responsiveness: speed is adjustable (quicker/slower)
- Low fault rate of product
- Low risk of accidents
- More environment-friendly (dust and moisture resistant)
- Equipped with input/output port, and more intelligent.
- Free speed control:Electric Balancer can move synchronously with operators with high or low speed selected by operators, which can adapt to the operation environment that sometimes need to operate at a high speed, and sometimes need to operate at a low speed and high precision.
- Ultra high speed: Electric Balancer’s lifting speed can reach 7.5–40 m/min and has become a popular lifting device in the current market for its high speed and accuracy.
- Accuracy of millimeter level: Our Electric Balancer can achieve incomparable accuracy with lifting speed less than 0.3 m/min, to ensure necessary accuracy control when lifting precise, expensive or fragile components.
- Safe selection: Our Electric Balancer is safe and reliable, which significantly reduces the occurrence of industrial injury accident.
- Anti-rebound technology: The technology can ensure that the Electric Balancer will not deviate or rebound when load weight changes, so as to reduce the occurrence of potential serious injury accident.
- Bearing overload protection: When the load exceeds rated hoisting capacity, the Electric Balancer will start automatic protection and stop lifting function.
- In-place function of operator: The slipping handle of our Electric Balancer is equipped with built-in photoelectric sensor, which will not allow the device to operate unless the operator gives operation command.
- Function of suspension mode: The Electric Balancer is equipped with multi-purpose “suspension mode”. Operator can control load by hands and complete precise positioning within the whole range, just by exerting applied force of 2 kg on load.
- Function of suspended unloading mode: The Electric Balancer is equipped with “suspended unloading mode” specially for unloading objects; the operator can control the load by hands to achieve accurate unloading.
- High performance-price ratio: The Electric Balancer can greatly improve factory’s production efficiency through improving workers’ labor efficiency and assisting complex operation.
- Auto-industry (parts and vehicle assembly such as engine, gearbox, instrument board, auto seat, glass)
- Warehouse loading and unloading
- Product sub-packaging
- Parts assembly
- Machinery manufacturing and processing
- Finish machining
- Repeated high frequency handling work
- Natural gas, oil and other energy industries (valve, drilling tools, etc.)
