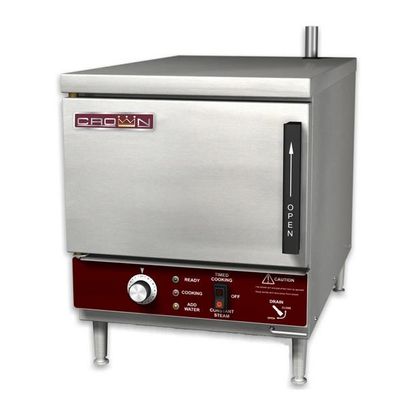

Crown - Model EPXN-3, EPXN-5 -Electric Counter Steamer
The EPXN-3 (3 pan) and EPXN-5 (5 pan) are countertop, boiler free convection steamers, c-CSA-us and NSF certified. These units are connectionless, no plumbing required. The unit is constructed of satin finish 304 stainless steel with a one piece welded 316 stainless steel cooking chamber with coved corners. The door has a removable inner liner of stainless steel with full perimeter gasket seal, an outer liner of one-piece all welded stainless steel, and a positive lock and seal mechanism with spring release. The steamer has removable stainless steel pan supports and steam diffuser plate.
The control housing is constructed of stainless steel with a full access removable panel. The controls include an illuminated timed cooking/off/constant steam switch, a ready indicator light, cooking indicator light, 60 minute electric timer with audible alarm that signals the end of the cook cycle and a low water indicator light with audible alarm. A door interlock switch interrupts steam generation when the door is open and is reactivated when the door is closed.
- 304 stainless steel exterior
- 316 stainless steel cooking chamber with coved corners
- Heavy gauge stainless steel door with full perimeter gasket
- Positive lock and seal mechanism with spring release door
- Illuminated timed/off/constant steam power switch
- Ready indicator light
- Cooking indicator light
- Add water indicator light with audible alarm
- 60 minute electromechanical timer with end of cycle audible alarm
- 4” adjustable legs
- Removable stainless steel pan supports
- Removable steam diffuser plate helps prevent objects from falling into water reservoir
- Selectable timed or constant steam cooking mode
- Electromechanical controls
-
16 oz. QuickClean treatment included
- 220 VAC, 3 Phase, 50/60 Hz
- 380 VAC, 3 phase, 50/60 Hz
- 415 VAC, 3 phase, 50/60 Hz
- 480 VAC, 3 phase, 50/60 Hz
600 VAC, 3 phase, 50/60 Hz (EPXN-3 only) - 380/220 VAC, 3 Phase, 50/60 Hz 4 wire
- 415/240 VAC, 3 Phase, 50/60 Hz 4 wire
- Correctional package
- 120 minute timer
- Drain hose kit (includes 5’ hose with fitting)
- 28” high single unit stand
- Double unit stacking stands available (see stacked spec sheet for details)
