Stellar - Model EC3200 -Electric Crane

SHARE

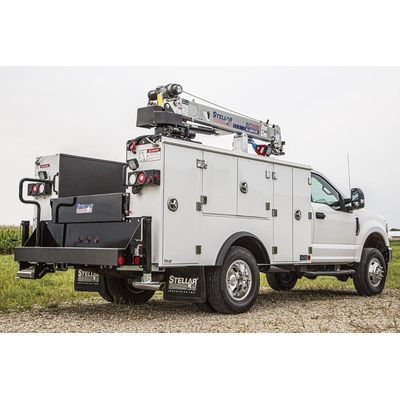

Stellar EC3200 Electric Service Cranes are available in both steel and aluminum. The aluminum model is 230 lbs lighter, making it a great choice if you need to increase payload on your mechanic or service truck.

Most popular related searches
worm gearing

3,200-lb Capacity with 15′ Horizontal Reach

Both models combine the lifting power you need with the economy you want. You’ll handle a wide range of lifting needs, and you won’t have to spend valuable time and money refueling. Because the EC3200 doesn’t require a pump, operation is significantly quieter than hydraulic cranes so you can work at times and in locations where reduced noise is essential.

EC3200 Includes:

  • Ball Bearing Rotation Gear for solid support and smooth operation
  • Steel Worm Gear for reliable speed control when rotating the shaft
  • Electric Planetary Winch that lifts the maximum crane load and offers the smoothest and fastest speeds in the market today for maximum productivity
  • Low-Profile Design for superior clearance
  • Exclusive Double-Boom Design for rigidity, strength and accuracy*
  • Integral Rotation Stop with 410° rotation for the greatest performance while protecting wires and hoses from damage
  • More Mounting Optionswith Standard or Narrow base choices
    • Wide mount version for 20″ wide sidepacks or larger
    • Narrow mount version for 14″ wide sidepacks
  • Certification for ANSI B30.5 and OSHA 1910.180 specifications

*Not available on EC3200 AL
