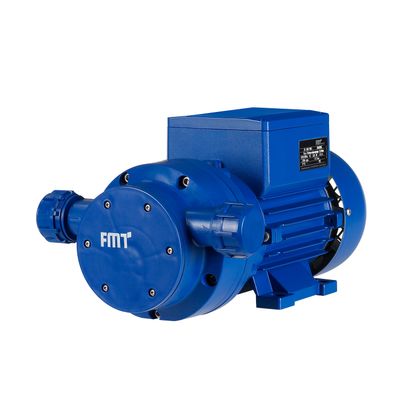

AdBlue - Model 25 286 -Electric Diaphragm Pump

Connecting cable, length (m): 2,8
Connection suction side: G 1'' male
Connection discharge side: G 1'' male
Hydraulic data:
Pump design: diaphragm pump, selfpriming
Delivery rate under free discharge (l/min): 35
Suction height (m): 3
Discharge pressure up to (bar): 1,7
Pumping media: AdBlue®, water, antifreeze
Motor data:
Insulation class: F
Highest permissible limit temperature (°C): 155
Voltage (V): 230
Frequency (Hz): 50
Power consumption (A): 1,5
Power (kW): 0,36
Thermal protection: self resetting
Duty cycle (min): 5
Rotation speed (rpm): 2800
Type of construction: IMB 3
Safety class: IP54
Materials of parts in contact with liquid:
Diaphragm and sealings: EPDM / FKM
Pump housing: PA 6 GF 30
Dimensions LxWxH (mm): 310 x 180 x 160
Weight (kg): 6,86

• First class construction of electric machines and pumps
• Designed for a long service life
• Encapsulation of the electric motor, which, in case of extreme temperature fluctuations, largely prevents the formation of condensed water and of short-circuits resulting thereof
• Motor and switch case made of shock resistant, die-cast aluminium
• Suction hight 3 m
• Materials guarantee a low weight and an exceptional lifetime with optimized efficiency

Dimensions LxWxH (mm): 338 x 200 x 196
Weight including package (kg): 7,51
Packing unit: 1,0
