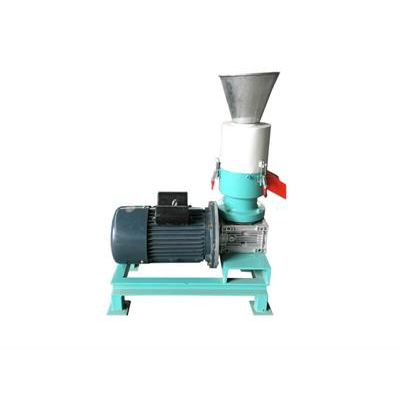

Amisy - Model AMSPLM 120 -Electric Flat Die Pellet Mill
With capacity of 40-60kg/h for making wood pellets. You can use them to process a variety of agricultural wastes, such as sawdust, corn stover, straw, rice husk, etc. For more details, please contact info@flatdiepelletmill.com.Model: AMSPLM120
Power: 2.2kw
Voltage: single phase/three phase: 220V 50HZ/380V 50HZ
Capacity: Wood pellets 40-60 kg/h
Feed pellets 60-100 kg/h
Dimension: 550*300*710mm
This electric flat die pellet mill is smaller in size, design and structure with capacity of Wood pellets 40-60 kg/h; Feed pellets 60-100 kg/h. Thanks to this salient features, it enjoys great popularity with small scale pellet biomass pellets and animal feed pellets production. You can use them to process a variety of agricultural and forest wastes, such as sawdust, corn stover, straw, rice husk, palm kernel shell and many other wastes into pellets. Low noise, high efficiency and high flexibility, this machine is your ideal pelletizing machine.
1. Electric flat die pellet mill is driven by electric motor which makes it more energy-saving and environmentally friendly.
2. Roller and flat die are made from precise material of alloy metal which makes this core part wear-resistant and not easy to break, besides, both sides can use the flat die, thus having a long service life.
3. This pellet machine can also be customized with three rollers or two rollers.
4. Transmission gears are made of high quality alloy steel, surface adopts carburizing and quenching treatment, precision machining by grinding, smooth transmission, low noise, large carrying capacity, low temperature rise, long life etc.
5. Quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, able to change new die and rollers fast and conveniently according to your needs.
