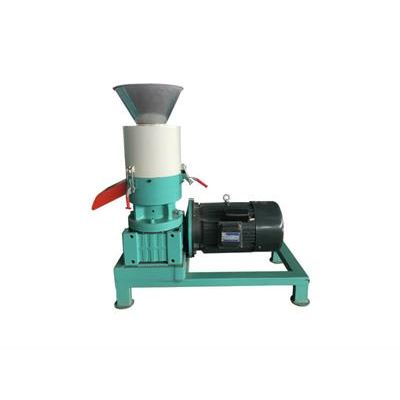

Amisy - Model AMSPLM 200 -Electric Flat Die Pellet Mill

Model: AMSPLM 200
Power: 7.5kw
Voltage: Three-phase voltage: 380V/ 50HZ
Capacity: Wood pellets: 110-140 kg/h
Feed pellets: 200-300 kg/h
Packing Size: 850*420*850mm

This electric flat die pellet mill is smaller in size, design and structure with capacity 110-140kg/h for making wood pellets. It is an electrically powered pellet mill with a 200 mm diameter die, the holes in the die can be pretty much whatever size you would like. You can use them to process a variety of agricultural and forest wastes, such as sawdust, corn stover, straw, rice husk, palm kernel shell and many other wastes into pellets. Low noise, high efficiency and high flexibility, this machine is your ideal pelletizing machine.

1. Electric flat die pellet mill is driven by electric motor which makes it more energy-saving and environmentally friendly.
2. Roller and flat die are made from precise material of alloy metal which makes this core part wear-resistant and not easy to break, besides, both sides can use the flat die, thus having a long service life.
3. Pellet machine adopts two or three pair of rollers ,high efficiency, uniform pellet size.
4. Quick disassembling type of precisely-cast die clamp is adopted to connect the die and quill flange, able to change new die and rollers fast and conveniently according to your needs.
5. Visibility. It is possible to view into the chamber when pelletizing, so you can solve problem in time.
6. Small size & weight which makes it widely used in home, small farm.
7. Ready-to-get raw materials, like sawdust, wood chips, peanut shell, wheat straw, cotton, barley, branch, rice husk, sunflower stalk, palm kernel shell and many other materials.
8. Suitable for making both feed pellets and wood pellets.
