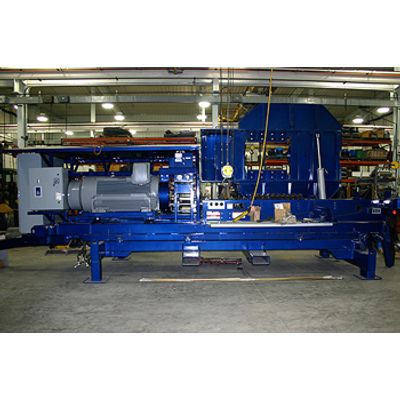

DuraTech - Model 3309 -Electric Industrial Tub Grinder
DuraTech’s 3309 Tub grinders just became stationary! It is now available with electric motor drives. A 400 HP soft start main drive motor as well as a 75 HP motor to power the hydraulic system are available in various voltages to fit your power grid specifications. These electric motors provide steady power with no emissions, little maintenance, and reduced noise levels
-
Self-adjusting PT-Tech torque limiter
-
Super single tires on tandem axles
-
75 HP electric motor
-
40” rotor mounted on a 4-1/2” stress proof steel shaft
-
Soft start for the 75 HP motor
Machine Configuration Options (Must choose one)
Skid Unit
Mobile Unit
Hammer Options: (Must choose one)
(40) Swing Hammers
(20) Fixed Hammers
Screen Options: (Must choose one)
Screen 1" Hole 1/2" Thick Hardox w/ Doubler
Screen 1 1/2" Hole 1/2" Thick Hardox w/ Doubler
Screen 2" Hole 1" Thick
Screen 3" Hole 1" Thick
Screen 4" Hole 1" Thick
Screen 4 3/4" x 7" Hole 1" Thick
Screen 6" x 9" Hole 1" Thick
Hitch Options: (Must choose one)
Pintle Hitch with Air Brakes
Pintle Hitch with optional Electric Brakes
Discharge Conveyor Drive Roller: (Must choose one)
Top Drive Roller
Magnetic Roller 21' 6" Conveyor
Remote Control Option: (Must choose one)
No Remote Control
6 Function Tub: Start, Stop, Rev Cnvyr: Up, Down Eng: Kill
6 Function plus Cover: Raise, Lower
Tub Cover
An operational characteristic of all grinders is that objects may be thrown out of the tub. Tub covers reduce the risk of potential injury or property damage from thrown objects. Proper use of the tub cover provides the operator with a means to help control the area over which thrown objects may fall. Combined with a decrease in the percentage of objects thrown from the tub, the tub cover is an effective means of reducing risk to personnel and property.
