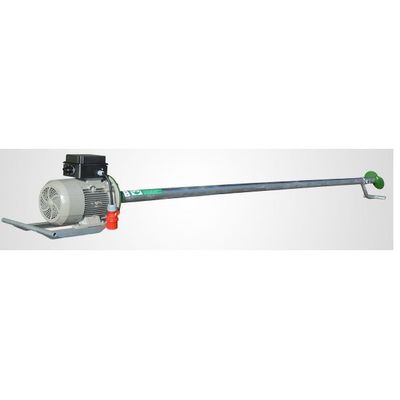

KBM - Model Type S-E2 -Electric Mixer

Mixer tube Ø 76 mm, propeller skid and motor grip are hot-dip galvanised. The motor is fitted with a Star-Delta reversing switch for selecting forward and reverse operation, integrated motor protection circuit breaker with undervoltage trip in the switch box and a CEE device plug. The drive shaft runs on maintenance-free roller bearings. Sealing is achieved with otary shaft lips type seals on bushes that are fitted with stainless steel tension springs in place of a normal one. The unit works without an oil filling and requires very low maintenance. If the mixer is used for fixed operation we recommend the oil-filled version, and if long operating times are envisaged, mechanical seals should be selected.
