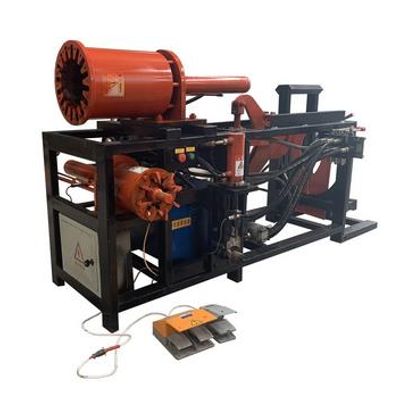

Vaner - Model MR-X -Electric Motor Recycling Machine

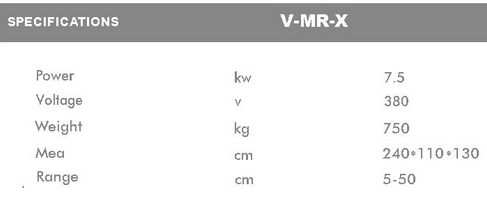

https://www.vanermachinery.com/MR-X-motor-stator-recycling-machine-p.html VANER MR-X Electric Motor Recycling Machine is professional equipment designed to recover the copper present in the scrap electric motors stator. MR-X has 4 main parts to finish the whole cutting and recycling process. The one part is the cutting part to cut copper wire from one side of motor stator. The other parts are copper pulling parts which are grabbing copper out from motor stators.- Product Item:MR-X motor stator recycling machine
- Power: 7.5KW
- Size: 240*110*130cm
- Range : 50-500mm
- Weight : 750KG
It can efficiently dismantle scrap motor stators with a diameter ranging from 5 to 50 cm. The processing capacity is 30-40 pieces per hour.
How Recycling Motors Works:
Stage 1
With extreme high pressure exerted by the splitting apparatus, the aluminum or cast iron housing is cut on opposing sides to separate and peeled away to expose the stator. The anchor/rotor is then removed.
Stage 2
The second stage is the cleaving of the stator or transformer block into two equal pieces. By opening these up, copper coils are now exposed and ready for separation from the remaining parts and materials.
Stage 3
The third stage of the process involves pulling the copper wiring away from the surrounding metal through which it had been threaded by means of a complex hydraulic system. Teeth grip the winding and pushing rods push the housing away, leaving the copper wiring fully exposed.
Advantages of Our electric motor recycling machine:
- OEM & ODM.
- One year warranty.
- 99.99% separation rate.
- High quality components.
- Body color: durable plastic-coated.
- Specially customized hydraulic system.
- XUANFENG motor or other same grade motors.
- DELIXI electric box components or other same grade compents.
