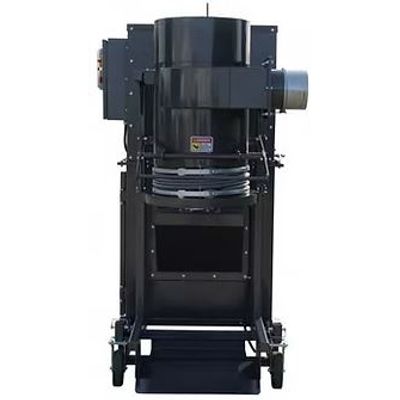

EST - Model PDC2500-E -Electric Powered Dust Collector
Dimensions 88"L x 48"W x 87"H 1500 lbs. Air Volume 2,000 ACFM at - 6" W.G. Power Source 5 HP, 230/460 V, 3 Phase, TEFC motor, 5 HP rated enclosed motor starter with 120 VAC controls, pre-wired plug @ 15`
-
Filtration
-
3 Stage Filtration
-
Cyclonic Separator
-
Stainless steel wire mesh pre-filter, spark arrestor
-
(2) Nanofiber cartridge media, fire retardant, MERV 15, 520 sq ft. media, 99.97% @ 0.3 micron
-
-
-
Standard Equipment
-
(1) 10" QF inlet hose connection with 8" QF reducer
-
Adjustable timed pulse jet cartridge cleaning system
-
Inlet air regulator with gauge
-
Magnehelic gauge
-
Dust & debris dropout drawer
-
Fork pockets in base
-
12 gauge carbon steel construction
-
Epoxy primer & polyurethane enamel top coat
-
-
Options
-
120/230 V, 1 Phase, TEFC motor
-
Dual voltage selector switch, 240/480 V
-
Gasoline engine power source
-
On-Board air compressor package
-
Compressor cold weather kit
-
Sound package for ultra quiet operation
-
HEPA rated discharge filter
-
Poly paint pad prefilter
-
Explosion proof options NEMA 7/9
-
Bulk bag unloading attachment
-
55 gallon drum lifting & pivot clamp
-
