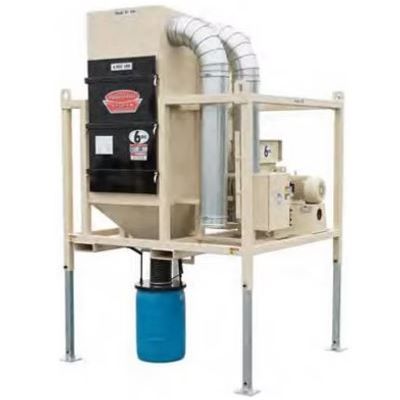

EST - Model 6000 CFM -Electric Powered Dust Collector

Air Volume

• 6,000 ACFM at - 12" W.G.

Power Source

• 20 HP, 460 V, 3 Phase TEFC motor with air control in a NEMA enclosure

Frame

• 12 gauge steel construction with fork pockets

• Heavy duty steel tube frame and certified lifting eyes

Filtration

• 12 cartridge filters with pulse jet style cleaning system

• Air to cloth ratio 2.4:1 (2496 sq. ft. of filter area)

Standard Equipment

• (2) 12" inlet connections quick release ducting

• Adjustable drum cover kit (manual crank down)

• Four telescoping legs with pins

• Inlet air regulator

• Magnehelic gauge

• Four point heavy duty lifting cage (low profile)

• Manual outlet damper with protective screen

• Quick release filter access

• Shipping container loading

Options

• 16" inlet connections

• Diesel power package

• Air compressor package

• DOT approved tandem axle trailer

• Ladder kit

• Sound package for quiet operation

• Removable feet (caster or v-groove)

• Discharge height leg extensions

• Four-way fork tubes

• Camlock connections (electric panel connections)

• Explosion proof vents, motor & fans

• Pneumatic vibrators

• Inlet & outlet connections
