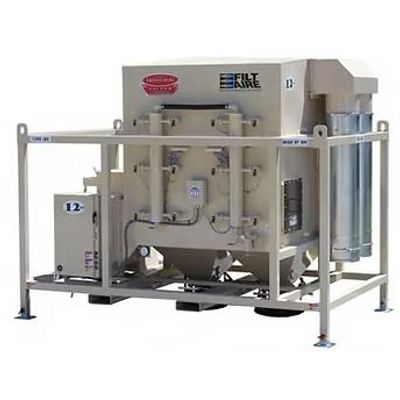

EST - Model 12,000 CFM -Electric Powered Dust Collector

Air Volume

• 12,000 ACFM at - 10" W.G.

Power Source

• 40 HP, 460 V, 3 Phase TEFC motor with all controls in a NEMA enclosure

Frame

• 12 gauge steel construction with fork pockets

• Heavy duty steel tube frame and certified lifting eyes

Filtration

• 24 cartridge filters with pulse jet style cleaning system

• Air to cloth ratio 2.4:1 (4992 sq. ft. of filter area)

Standard Equipment

• (2) 16" inlet connections quick release ducting

• Adjustable drum cover kit (manual crank down)

• Four telescoping legs with pins

• Inlet air regulator with gauge

• Magnehelic gauge

• Four point heavy duty lifting cage (low profile)

• Manual outlet damper with protective screen

• Quick release filter access

• Shipping container loading

Options

• Diesel power package

• Air compressor package

• DOT approved tandem axle trailer

• Ladder or platform kit

• Sound package for ultra quiet operation

• Removable feet (caster or v-groove)

• Nanofilter media MERV 15

• Electrical panel Camlock connections

• Explosion proof options

• Pneumatic vibrators

• Inlet & outlet connections
