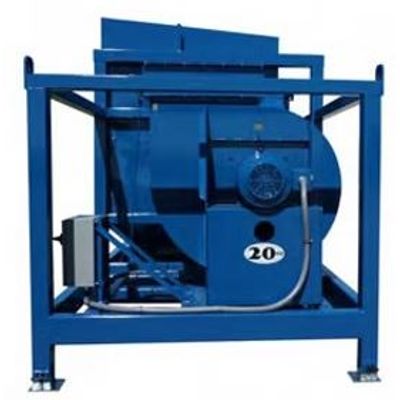

EST - Model 20,000 CFM -Electric Powered Dust Collector

Air Volume

• 20,000 ACFM at - 10" W.G.

Power Source

• 50 HP, 460 V, 3 Phase TEFC motor with all controls in a NEMA 4 enclosure

Frame

• 12 gauge steel construction with fork pockets

• Heavy duty steel tube frame and certified lifting eye

Filtration

• 36 cartridge filters with pulse jet style cleaning system

• Air to cloth ratio 2.46:1 (8,136 sq. ft. of filter area)

Standard Equipment

• (3) 20" inlet connections quick release ducting

• Adjustable drum cover kit (manual crank down)

• Six telescoping legs with pins

• Inlet air regulator with gauge

• Magnehelic gauge

• Four point heavy duty lifting cage (low profile)

• Manual outlet damper with protective screen

• Quick release filter access

Options

• Diesel power package

• Air compressor package

• DOT approved tandem axle trailer

• Ladder or platform kit

• Sound package for ultra quiet operation

• NEMA 4 or 4X soft start

• Nanofilter media MERV 15

• Electrical panel Camlock connections

• Explosion proof options

• Pneumatic vibrators

• Inlet & outlet connections
