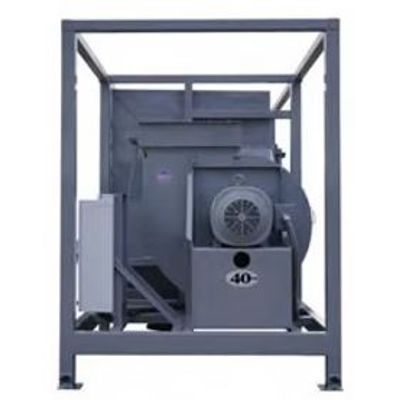

EST - Model 40,000 CFM -Electric Powered Dust Collector

Power Source

• 125 HP, 460 V, 3 Phase TEFC motor with soft start controls in a NEMA 4 enclosure

Frame

• 12 gauge steel construction with fork pockets

• Heavy duty steel tube frame and certified lifting eyes

Filtration

• 72 cartridge filters with pulse jet style cleaning system

• Air to cloth ratio 2.67:1 (14,976 sq. ft. of filter area)

Standard Equipment

• (3) 24" inlet connections quick release ducting

• Adjustable drum cover kit (manual crank down)

• Eight telescoping legs with pins

• Inlet air regulator with gauge

• Magnehelic gauge

• Four point heavy duty lifting cage

• Manual fan outlet damper with protective screen

• Quick release filter access

Options

• Low grease points

• IEEE-841 serve duty motor

• Sound package for ultra quiet operation

• NEMA 4X stainless steel enclosure

• Nanofilter media MERV 15

• Electrical panel Camlock connections

• Explosion proof options

• Pneumatic vibrators

• Inlet & outlet connections
