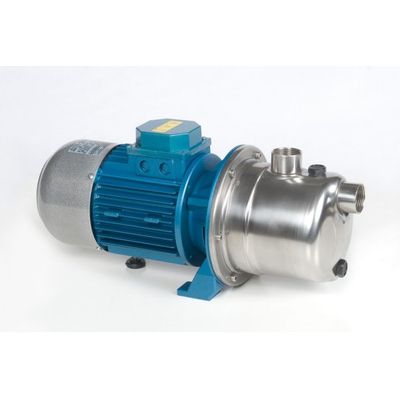

Tellarini - Model ECC 12 JET -Electric Pumps

FromTellarini Pumps

SHARE

Self-priming centrifugal electric pumps of jet type, suitable for pumping and pressurizing clean water up to 60 ° C. They are equipped with an ejector that guarantees high suction and self-priming capacity and operation even in the presence of gas dissolved in the liquid. The ECC JET series is made of AISI 304 stainless steel and technopolymer, it is provided with a 12V or 24V DC motor.

Most popular related searches

self-priming centrifugal electric pump

centrifugal electric pump

self priming electric pump

self-priming centrifugal pump

self-priming electric centrifugal pump

self-priming pump

pressure cleaning

domestic water system

The product are particularly suitable for use:

transports (tankers, road machines, on board water systems)
domestic environment (water, diesel, water systems, irrigation)

Maximum capacity : 62 lt/min
Maximum head : 32 m
Gasket on the shaft: Mechanical gasket
Maximum priming height : 6 m
Threaded ports: 1"
Maximum liquid density 1.1g/cm3 free of hard particles in suspension
Maximum temperature 90°C
Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
Unidirectional pumping flow
Coupling with impeller locked
Possibility of working for short periods with closed pipes
During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Material

Pump Parts: AISI 304
Counterflange: AISI 304
Shaft : AISI 316
Impeller : Tencopolymer
Gaskets: NBR
Mechanical gasket ceramic/graphite/nbr

MOTOR

Powered with a Dc motor 12V
Equipped with MEC 63 motor (2650 rpm 0.7HP / 0,5 KW)
Service S1
Ip protection degree 23
Power supply connection via terminal board on the motor
