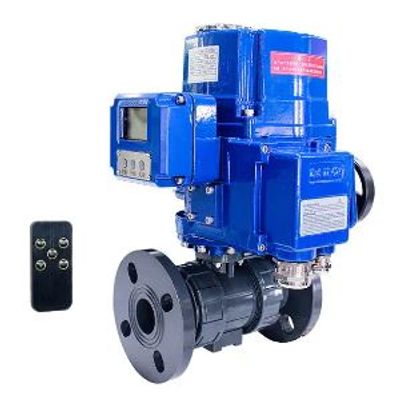

Fleyenda Flow - Model QT010-B -Electric PVC Ball Valve

• Fast Delivery: Standard products in stock
• ODM Service is Available
• One-stop Solution: Full set of accessories for the option to improve your working efficiency
• Quality Assurance: CE, ISO9000 certification. Strict IPQC & QC to make sure the high-quality actuator and valve
• Cost-effective: Long service life and lower maintenance expenses. Simple maintenance reduces the potential of project delays.

• Construct: Simpler, lighter, and more compact structure.
• Medium: Convey muck and gather the least amount of liquid at the pipeline`s mouth
• Maintenance: A 2-section valve stem is pinless. Maintenance and disassembly are easy.
• Sealing: PTFE, The sealing substance is corrosion and age-resistant
• Actuator: On-off type, adjustable type, intelligent type can be optional
• Fast and Responsive: Quick opening and closing functions
• Low and High-temperature Resistance: PDEM: -10? ~120? / PTFE: -30? ~180?

• Housing: The housing is made of hard aluminum alloy, with anodic oxidation treatment and polyester powder coating, contributing to its strong corrosion resistance. It has a protection class of IP67, NEMA4 and 6, and is also optional for IP68 and the explosion-proof type.
• Motor: The fully enclosed squirrel-cage motor has a small size, a large torque and a small inertia force, with an insulation class F and a built-in thermal protection switch to prevent damage to the motor caused by overheating.
• Indicator: The indicator is mounted on the central shaft and used to observe the valve position. The mirror adopts a convex lens design with no water accumulation, thus easier for observation.
• Limit Switch: Mechanical + electronic limit. The mechanical limit screw is adjustable, being safe and reliable. The electronic limit switch is controlled by the cam mechanism, and the position can be set accurately and easily just by means of adjusting the mechanism simply, without battery support (All micro-switch contacts are silver contacts).

• Anti-corrosion: PTFE or EPDM "O" ring at the end of the order, with the use of PTFE gasket seat, prevents most of the chemical substances of corrosion.
• Low Adhesion: Gasket tightness can be adjusted moderately. The pipe wall is smooth and clean and has less friction resistance and adhesion when conveying fluids.
• Low Thermal Conductivity: Electric PVC ball valve flame retardant can be self-extinguishing.
• Aging Resistance and Anti-Ultraviolet: The normal service life is longer than other piping systems.
• The heavy ion content in the medium reaches the standard of ultrapure water, and the sanitary index meets the requirements of national sanitary standard.

QT Explosion-proof Actuator Type

• ON-OFF Type:Feedback:the Active Contact Signal,Passive Contact Signal, Resistance, 4-20 mA
• Ordinary Adjustable Type:Input & Output Signal: DC 4-20mA, DC O-10V, DC 1-5V
• Intelligent Switch Type:The Field,Remote Control Switch Type, and MODBUS, PROFIBUS Field Bus
• Intelligent Regulation Type:The Field, Remote Control Regulation Type and MODBUS, PROFIBUS Field Bus
• IP Grade : IP67
• Explosion-proof Rating : EXD IIB T4
• Power Supply : AC220V, AC380V, DC24V
• Optional Type : On/off Type, Regulating Type
• Working Humidity : 90% RH
• Surface : FBE Coated
• Limit Switch : ON/Off each
• Motor : Squirrel-cage Asynchronous Motor
• Output Power : 20-180W
• Rotation Angle : 0 ~ 90°
• Voltage : AC220V AC110V AC24V DC24V DC12V

Double Union PVC 2 Way Ball Valve

• Size Range : DN15-DN300
• Body Material : PVC/UPVC
• Seat Material : EPDM/PTFE
• Connection Type : Double Union (GB/ANSI/JIS/DIN)
• Structure Type
• Floating ball core, 3way-T type, 3way-L type
• Working pressure : 10 Bar
• Temperature Of Medium : EPDM: -45? ~80? / PTFE: -30? ~180?
• Applications :
• Water, Liquids, Gas, Oil, Powder, Steam, Acid-base Corrosive Medium.
