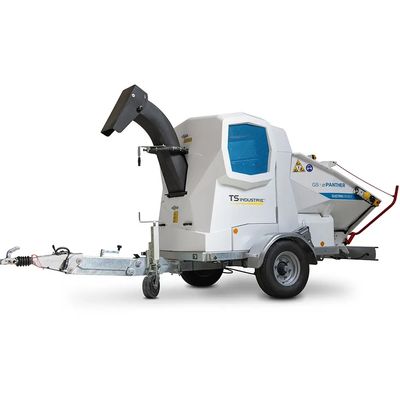

TS IndustrieModel GS/ePANTHER -Electric Rotor Shredder

SHARE

The e PANTHER is TS INDUSTRIE`s largest electric model. It offers autonomy for up to two working days to shred your green waste up to 19 cm in diameter. Thanks to its LiFePO4 batteries, its 35 kW asynchronous motor (equivalent to 56 hp) and a 50 cm feed belt, the e PANTHER is your ideal partner. The adjustable parallelogram drawbar makes it easy to transport and the TS.Cockpit allows you to clearly control and monitor the rotor shredder. With the option of a presence sensor, you can reduce the energy consumption of the e-models even further, as this sensor detects whether a user is behind the machine and activates a shutdown or not.

Most popular related searches
  • REF : GSEPANTHER
  • TS INDUSTRIE`s largest model of electric rotor shredders with an autonomy for up to two working days Diameter up to 19 cm
  • Engine: Asynchrone
  • Engine power (hp/kWh): 35
  • Autonomy (hrs): 2 working days
  • Start-/Stop function: Yes, manually
  • Equivalent power of combustion engine: 56
  • Battery: LiFePo4, 96V - 360 Ah
  • Energy safe mode: yes
  • Power consumption (kWh): 10
  • Single-phase charger: Standard
  • Charging time (hrs): 12
  • Dimension working position (mm): 4510 x 2020 x 2380
  • Average performance (m³/h): 38
  • Machine weight (kg): 2150
  • Max. diameter (cm): 19
  • Warranty: Battery : 3 years or 1.000 hours bof 85% of SOH (State-of-Health)
  • Clutch: non
  • Rotor weight (kg): 150
  • Gross vehicle weight chassis (kg): 2200
  • Width feed roller (mm): 400
  • Diameter rotor (mm): 560
  • Number of hammers: 12
  • Width feeder belt (mm): 500
  • Number of knives: 6
  • Diameter feeder roll (mm): 360
  • Height funnel (mm): 2330
  • Turnable discharge chute: 180°
  • Mobilty platform: Series
  • Dimension funnel (mm): 1600 x 1620
  • Drawbar: Parallelogram drawbar
  • Chock/support: Series/Series
  • Height funnel (mm): 760
  • Options: Presence sensor
