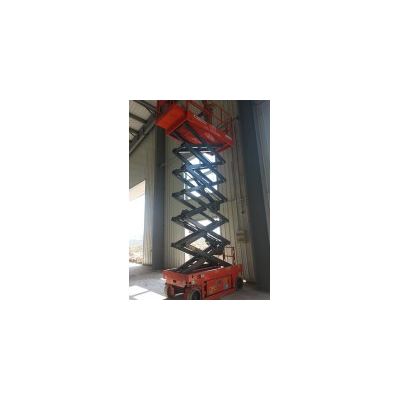

Sinoboom - Model GTJZ1212 -Electric Scissor Lift

SHARE

GTJZ1212 self-propelled hydraulic scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, explosion-proof pipe unit and emergency descending switch; hydraulically driven ascending, descending and travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.

Most popular related searches
safety system
air pollution
equipment safety
hydraulic lifting
noise pollution
waterproofing

Platform height 39 ft (11.9 m)
Worki height 45 ft (13.9 m)
Power source 24V DC

  1. Small turning radius: The outside turning radius of the tires is 7 ft 7 in (2.35 m) and the inside turning radius is0 ft (0 m).
  2. Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
  3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
  4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
  5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
  6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
  7. Easy maintenance: Dual revolving doors, easy to maintain.
  8. Energy-saving and environment-friendly: Low noise, no pollution, energy-saving and environmental protection.

Productivity
Max. Platform height: 11.6M
Max. Working height: 13.6M
Extension outreach: 0.9M
Turning radius (outside): 2.35M
Turning radius (inside): 0M
Rising/Falling speed (Without loading): 65s/45s
Grade ability: 20%
Load capacity (Platform): 320kg
Driving Speed(stowed): 0~3.2km/h
Driving Speed (raised): 0~0.8km/h
Max allowable wind speed: 12.5m/s
Max allowable slope (front/back): 3°
Max allowable slope (side/side): 1.5°

Dimensions
Overall length(stowed): 2.43M
Overall width(stowed): 1.15M
Overall height (stowed, Guardrail folded): 2.04M
Overall height (stowed, Guardrail unfolded): 2.7M
Ground clearance: 0.09M
Wheelbase: 1.87M
Platform Size (L*W*H): 2.3*1.15*1.1M
Overall weight(for indoor and outdoor use): 3090kg
Overall weight(indoor use only): 2680kg
Tire: 406*125 MM/solid
Hydraulic oil tank vol.: 23L
Hydraulic system vol.: 30L
Battery: 6V*4/225AH
Control Voltage: 24VDC
Power Unit: 24VDC, 3KW
Drive & steer model: 2WD, front wheel
Input voltage of Charger: 100~240V AC
Output current of Charger: 25A
Hydraulic system pressure: 24MPA
Brake: 2 rear wheel
