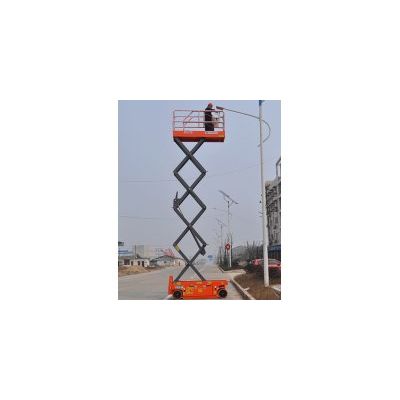

Sinoboom - Model GTJZ0808 -Electric Scissor Lift

Platform height 7.9m
Working height 9.9m
Platform Extention 0.9m
Payload 250kg
AC Power
Options available for:
4*225Ah Battery
Platform AC power
Caution light
Conductive strip
Leakage protection

Options available

• Overload sensor with alarm
• AC power on the platform
• Platrom work lights
• Airline to the platfrom
• 4*225Ah Battery
• Leakage protection
• Portuguese manuals
• Portuguese Warning marks
• Onboard diagnostic system

Benefit for the applications:

• Roll-out platform provides spacial-wise workspace
• Folded guardrails helps easy access to narrow doorway at job site or for transportations like container or elevator
• 7 indoor models are available between working height at 8m to 12m
• Compact design with 0 turn radius facilitates working in confined area
• 25% gradeablility for driving on slopes
• Swing-out tray on scissis for easy maintenance
• Portable board diagnosis helps troubleshooting,also making the oprator easier to reset the operation conditions

Standards compliance

• AS1418-2011, EN280-2010, JG/T 5100

Dimensions

Platform height max.: 27 ft (8.1 m)
Working height max.: 33 ft (10.1 m)
Platform extended: 3 ft (0.9 m)
Length - stowed: 7 ft 8 in (2.39 m)
Width - stowed: 2 ft 7 in (0.81 m)
Height - folding guardrails: 7 ft 7 in (2.35 m)
Height - rails folded: 6 ft 4 in (1.96 m)
Height - fixed rails: 7 ft 7 in (2.35 m)
Wheelbase: 6 ft (1.85 m)
Ground clearance: 4 in (0.1 m)
Platform size (L*W*H): 7 ft 5 in*2 ft 7 in*3 ft 6 in (2.25 m*0.81 m*1.1 m)

Productivity

Max. platform occupancy: 2
Lift capacity: 551 lbs (250 kg)
Lift capacity - extension deck: 265 lbs (120 kg)
Drive speed - stowed: 0~2.0 mph (0~3.2 km/h)
Drive speed - raised: 0~0.5 mph (0~0.8 km/h)
Gradeability: 25%
Turning radius - inside: 0 ft (0 m)
Turning radius - outside: 6 ft 9 in (2.1 m)
Raise / Lower speed: 33 /37 s
Controls: Proportional
Drives: Dual front wheel
Brakes: Dual rear wheel
Tire size (solid non-marking): 15 in * 5 in (380 mm * 125 mm)

Power

Power source: 24V DC (4*6V, 225Ah batteries)
Hydraulic system capacity: 4.76 gal (18 L)
Power: 3 KW

Weight

Indoor: 4233 lbs (1920 kg)
Standards Compliance: CE/ ISO/ ADR/ ARAMCO
