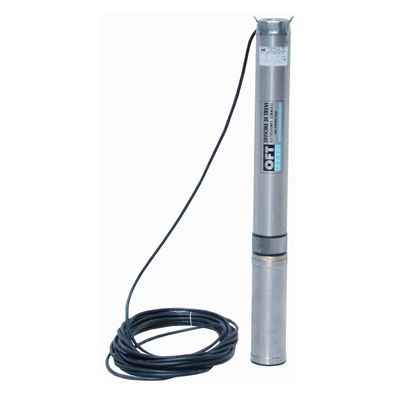

Capri - Roma - Electric Submersible Pump

Features

• Multistage centrifugal electric submersible pumps for wells.
• External pump case, delivery port, suction, motor shaft and others components in stainless steel.
• Impellers, diffusers in special technopolymer.
• The check valve made of stainless steel is installed inside the delivery head.
• The pump is equipped with 30 m of H07RN-F electric cable.
• External diameter: max 105 mm.

Motor

• 2 poles asynchronous motor, 50 Hz, 2850 rpm.
• Class F insulation.
• IP68 protection.
• Working voltage: single-phase 230 V, three-phase 400 V.
• The electric motor is cooled by non-toxic, non-polluting liquid.

Working Conditions

• Pumped liquid: clean water, non aggressive, without solid particles.
• The pump can not operate in dry conditions.
• Pump body always completely submerged.
• Temperature of pumped liquid: min 5°C - max 30°C.
• Vertical operating position.
• Maximum immersion depth: 10 m.

Maximum number of starts per hour: 20
