Joeo - Model MIL STD 810G -Electrical Appliances Electrodynamic Shakers
MIL STD 810G Electrodynamic Shakers Vibration Testing Machine produce by ALI Testing Equipment company of famous brand JOEO Used to test some of the most complex and demanding products in areas of aviation, aerospace, automotive, shipbuilding, defense, and electronics, etc.
- Electrodynamic vibration system Sinusoidal excitation force range : 1kN ~ 600kN
- Shake testing covered in MIL-STD-810G are used to simulate the vibration environment that a device may experience during transportation or operation.
- Vibration shaker test specially developed for MIL-STD-810G international standard applicant in military units and related products.

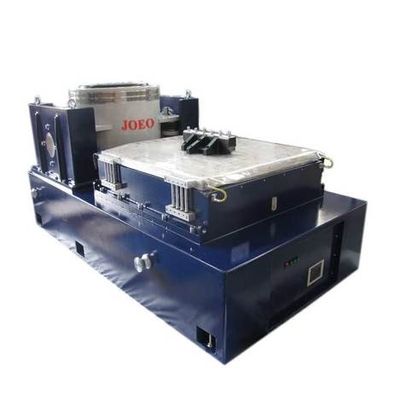

Electro Dynamic vibration shaker machine designed to meet MIL-STD-810G requirements typically includes a vibration table (Vertical bench or Horizontal bench for optional) that can be set up to simulate different frequencies and amplitudes of vibration. JOEO Electrical Appliances electromagnetic shaker to be tested is mounted on the vibration table, and then subjected to a range of vibration conditions that simulate transportation or operational vibration environments.
Choice the Vertical Bench:
- JOEO head expanders have passed finite element analysis
- Material optional with“magnesium” or “aluminum”
- Options include “square” or “round” shape
- Designed to optimize performance on Electro Dynamic Vibration Shaker
- High quality manufacturing process to ensure consistent performance with excellent technical indicators
- Customized shapes and sizes are also available
- Sinusoidal excitation force range: 1kN ~600kN
- Random to sinusoidal excitation force ratio 1:1
- Sine, Random and Shock etc. test function capabilities
- Two-times-sine shock force (Three times optional)
- Displacement peak-to-peak value of 25mm, 40mm; 51 mm, 76mm or 100mm
- X, Y, Z three-axis sinusoidal vibration test and broadband random vibration test
- Lightweight armature with optimized design and good vibration-resistant performance with excellent vibration isolation with the air spring at the trunnion position
- High weight bearing capacity of center air spring support and good low-frequency performance
- Double magnetic circuit design with low flux leakage and uniform magnetic field
- Equipped with an automatic centering system, to ensure the armature is always in a balanced position during movement
- Cooling: Water cooling or Air cooling
