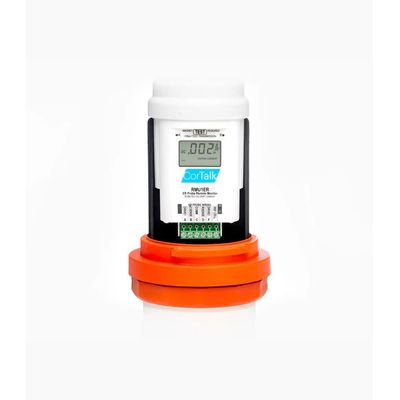

Mobiltex CorTalk - Model RMU1-ER -Electrical Resistance (ER) Corrosion Probes
The CorTalk RMU1-ER collects and transmits a measurement of the corrosion rate near the pipe surface through the use of sacrificial electrical resistance (ER) probes as frequently as every few hours via satellite or cellular network. This provides technicians with highly detailed, near real-time measurement data that is useful in determining the underlying cause of corrosion and the ability to measure changes in corrosion conditions including the effectiveness of repairs, temperature cycles or sudden environmental changes.
Test Station Remote Monitoring of Electrical Resistance (ER) Corrosion Probes
The RMU1-ER is designed to be compatible with a wide range of ER probes. The RMU1-ER has the capability to measure ER probes constructed with tubular, wire, cylindrical, flush, spiral and strip geometries.
In addition to metal loss, the RMU1-ER can also measure the ER probe potential when a reference cell is connected. As the ER probe is typically electrically connected to the protected structure, the structure potential can be measured.
Combined with the CorView Cloud Platform, pipeline operators can implement and control a network of RMU1-ER devices to gain deep insight into the performance of the CP system, generate reports and instantly identify areas of concern.
- Test Station: Electrical Resistance [ER] Probes
- >10Yr Battery Runtime || Field Replaceable || Standard AA L91 Lithium
- 1000000 Readings Datalogger || Optional Feature
- Future-proofed CAT-M1 [LTE-M 4G/5G] Cellular Backhauls
- Future-proofed Satellite [Iridium & Globalstar] Backhaul
- Highest Lightning, Surge, Overvoltage Immunity || No Earth Ground Bond
- Fast, simple installation
- Established Electrical Resistance (ER) technique
- Multiple functionality
- Intuitive controls and configurations
- Global communication capabilities
- Built to withstand the toughest conditions
- Long-life battery
- The compact, weather-proof RMU1-ER is designed to fit entirely inside a standard CP test station and can be installed in about 20 minutes
- Direct measurement data through insulation near surface of pipe to identify key events causing corrosion vis metal loss, corrosion rate and trends
- Measure the ER probe potential when a reference cell is connected as the ER probe is typically electrically connected to the protected structure, the structure potential can be measured.
- The RMU1-ER can be easily programmed with our standard Programming Interface and a PC and can also be completed with a compatible iOS or Android-based mobile device and our available Bluetooth Interface
- Available with cellular or satellite communication capability, the RMU1-ER can transmit data from virtually any location. This helps improve the quality and frequency of data collection, while reducing the need for workers to undertake long, potentially dangerous trips, to remote sites
- Lightning, surge and overvoltage protection and broad operating temperature range (-40° to +60°C [-40° to +140°F])
- User-replaceable standard AA battery provides up to 10 years of monitoring and data transmission and maximizes lightning isolation
Environmental
- Operating Temperature: -40° to +60° C (-40° to +140° F)
- Storage Temperature: -45° to +80° C (-49° to +176° F)
- Maximum Altitude: 5000 meters above sea level
- Humidity: 0 to 100% RH non-condensing
Physical + Power
- Weight: 225 grams (0.5 lbs)
- Size: 80mm x 80mm x 110mm (3.15”x3.15”x4.33”)
- Battery Life: L91 Lithium AA batteries — Typically 10 years based on readings every 7 days. Typically 5 years based on readings every 12 hours.
