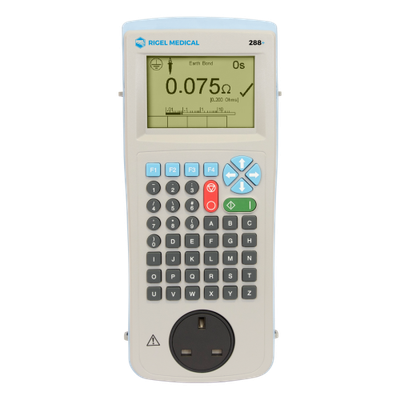

Rigel - Model 288+ -Electrical Safety Analyzer

SHARE
The Rigel 288+ Electrical Safety Analyzer is engineered to provide a comprehensive solution for verifying compliance with both international and local safety standards such as IEC/EN 62353, AAMI/IEC/EN 60601-1, IEC 61010, NFPA-99, and AS/NZ 3551. Its compact and lightweight design, coupled with battery-powered operations, enables mobility and convenience, ensuring that tests can be performed without the necessity of mains voltage. Users can execute insulation, earth/ground bond testing, and touch or point-to-point leakage current testing with accuracy. Additional capabilities include 50V and 100V DC insulation tests for low voltage equipment and high current, low energy earth bond testing. The device operates on standard AA batteries, allowing extensive testing without frequent battery changes. It is also equipped with pre-programmed test sequences and limits for IEC 60601 class 1 standards, facilitating ease of use and compliance. The Rigel 288+ has a provision for extensive data storage, supporting up to 5,000 asset records and 50 test sequences.
Most popular related searches
electrical safety
electrical safety testing
safety testing
analyzer test
EN standard
  • Compact and lightweight design
  • Full compliance to international and local safety standards IEC/EN 62353, AAMI/IEC/EN
  • 60601-1, IEC 61010, NFPA-99 and AS/NZ 3551
  • Battery powered earth/ground bond, insulation and leakage testing
  • Additional 50V and 100V DC insulation tests for low voltage equipment
  • Accurate high current, low energy earth bond testing



On-Board Storage
Storage for test records, and customizable sequences and codes

Portability with Battery Powered Tests
Lightweight and portable with battery-powered testing

International & Local Testing Standards
IEC/EN 62353, AAMI/IEC/EN 60601-1, IEC 61010, NFPA-99, AS/NZ 3551

Accurate and reliable earth continuity testing
Features a high current low power zap circuit

The Rigel 288+ electrical safety analyzer offers an accurate and fast solution for meeting international and local safety standards.

Enjoy complete freedom to move around, without the need for mains voltage, thanks to battery powered test capability. Using standard AA batteries, tests can be carried out for insulation, earth/ground bond testing, and touch or point-to-point leakage current testing.

  • Test to IEC/EN 62353, AAMI/IEC/EN 60601-1 & more
  • Built-in electronic data storage
  • Flexible user-definable test routines
  • Battery-powered leakage, insulation & earth/ground bond tests
  • 50/100/250/500V DC insulation testing
  • Automatic secondary verification ensures the correct result first time
  • Small & compact with direct printing via Bluetooth connectivity
  • Available in a wide range of power configurations
  • Compatible with Med-eBase for simple asset management
