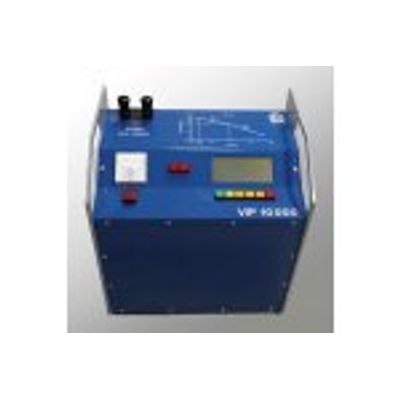

IRIS - Model VIP 10000 -Electrical Transmitters

Predominantly used as part of mineral exploration studies, the VIP series include three systems with different power specifications. This transmitter is generally used together with V-Fullwavers or Elrec Pro receivers.

To simplify operation, the instrument manages the injection current and voltage automatically. When starting, the VIP automatically operates several safe tests to ensure that the device is not misused.

All VIP systems offer four operating modes;

• Time domain waveform, On Time (Ton) and Off time (Toff),
• Frequency domain waveform, outputting two user-selectable frequencies from 0.0625Hz and 4Hz.
• Dual frequency mode, a base frequency is selected from 0.0625 to 0.5Hz and the high frequency is fixed at 8 times the base frequency.
• Continuous mode, injects a constant DC current into the ground.

The VIP 10000 power makes it suitable for use in almost all geological formations. In situation where a wired synchronization is not possible, the VIP can be operated alongside the I-Fullwaver for accurate absolute time stamps when recording precise full waveform time domain measurements

Transmitter
Pulse duration: 500ms,1s, 2s, 4s, orSs
Output Power: 0-10000 W
Output Voltage: 0-6000Vpp
Output Current: regulated 0 - 20000 mA
Resolution /Accuracy: 1 mA/1%
Frequency option: 0.0625Hz to 4Hz by factors of 2
Readings: Displays output current, output voltage, contact resistance and input power.
Protection: Short circuits, thermal protection, Input overvoltage and under-voltage.
Power requirements: 175to270VAC, 4S-450Hz three-phases generator ( or single phase at reduced power)

Dimensions
( L x W x H) 55x51x37cm
weight: 36Kg
Operating Temp.:  -40 to -50!C
