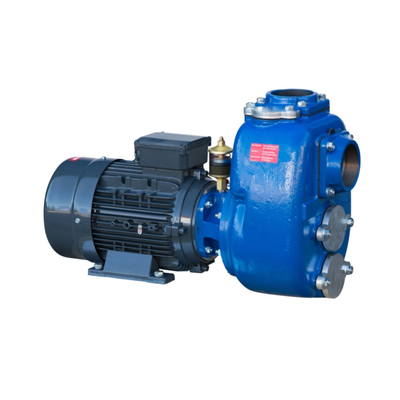

BBA Pumps - Model B70 BVGMC Multi-Use -Electrically Driven 3 Inch Self-Priming Centrifugal Pump
The B70 is a 3 inch self-priming centrifugal pump suitable for pumping slightly contaminated water with solids up to 22 mm. The highly efficient electric motor is designed to meet various requirements across markets. The monoblock pump design is compact, saves weight and is easy to integrate into a pipeline system.
- Pump flow up to 82 m³/h
- Maximum total head 20 mwc
Many options available
The materials that come into contact with the fluid are made of cast iron as standard, on request this self-priming pump can be supplied in bronze (BVBMC) and stainless steel (BVKMC). We can deliver the pump with a stainless steel cutting blade. This makes it suitable for use in sanitary installations aboard ships or in industrial applications. Other options are pump flanges, alternate gaskets and sealings, marine motors, certificates and more.
- Discharge x Suction: 3" x 3"
- Max. flow: 82 m³/h
- Max. head: 20 mwc
- Free passage: 22 mm
- Material: cast iron - bronze - stainless steel
- Motor: 4 kW - 2 pole
- Voltage: 400/690V - 50 Hz
- Starting method: DOL
- Dry weight: 60 kg
Design features
- Basic, reliable technology
- Large solids handling capacity
- Suitable for use with hot fluids
- Cooled shaft seal
- Extended life due to pump design
- Available with ATEX approval
Fields of application
- Shipping
- Industry
- Construction
- Waste water management
- Emergency pump units
- Irrigation
- Agriculture
- Horticulture
Complete package designed & built by BBA Pumps
- Complete in-house design & production
- Over 60 years of experience in the market
- Extensive testing facility in-house
- Contemporary & functional design
- Durable & eco-friendly materials
- Custom builds available
After sales service & product support
- Single supplier for parts, spares & accessories
- Dedicated customer help-desk (24h service)
- Dedicated service department in-house
- Global parts distribution network
- Optional global on-site servicing
- Extensive training options available (technical & commercial), on-site or in-house
BBA centrifugal pump
- Model: B70 BVGMC
- Max. flow: 82 m3/hour
- Max. head: 20 mwc
- Free passage: 22 mm
- Pump speed. 2850 rpm
- Connections: 3ʺ BSP
Electric motor
- Power: 4 kW – 2 pole
- Voltage: 400/690 V
- Frequency: 50 Hz
- Mounting: B3/B14A, IP55, ISO F
- Assembly: Monobloc
Materials
- Pump casing: Cast iron GG20 – 0.6020
- Wear plate: Cast iron GG20 – 0.6020
- Impeller: Cast iron GG20 – 0.6020
- Shaft seal: Mechanical seal
- Seal faces: Sic / Sic / Viton
- Pump shaft: Steel C45 – 1.1191
- Gaskets: NBR / paper
