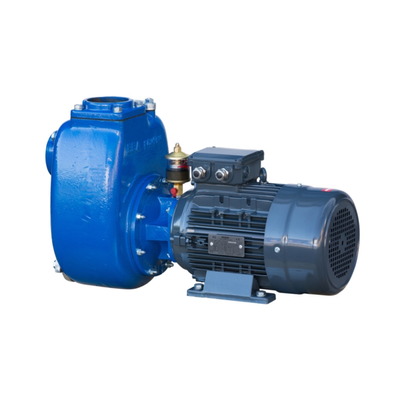

BBA Pumps - Model B85 BVGMC Multi-Use -Electrically Driven 3 Inch Self-Priming Centrifugal Pump
The B85 is a 3 inch self-priming centrifugal pump suitable for pumping dirty water with solids up to 40 mm. The highly efficient electric motor is designed to meet various requirements across markets. The monoblock pump design is compact, saves weight and is easy to integrate into a pipeline system.
- Pump flow up to 90 m³/h
- Maximum total head 16 mwc
Many options available
The materials that come into contact with the fluid are made of cast iron as standard, on request this self-priming pump can be supplied in bronze (BVBMC) and stainless steel (BVKMC). We can deliver the pump in a stackable frame or on a wheelbarrow. This makes it suitable for use in the rental market and for mobile applications.
- Discharge x Suction: 3" x 3"
- Max. flow: 90 m³/h
- Max. head: 16 mwc
- Free passage: 40 mm
- Material: cast iron (others on request)
- Motor: 5,5 kW - 4 pole
- Voltage: 400/690V - 50 Hz
- Starting method: DOL
- Dry weight: 132 kg
B self-priming centrifugal pump
The B range of pumps has been designed with a clear focus on reliability, efficiency and durability, ranging from 1-1/2ʺ to 12ʺ. Featuring an open impeller configuration in combination with a changeable wear plate, facilitating servicing and minimising costs of spares. All B series pumps are fitted with a non return valve in the suction port, eliminating the need for a foot valve in suction line and allowing quick priming.
Design features
- Basic, reliable technology
- Large solids handling capacity
- Suitable for use with hot fluids
- Cooled shaft seal
- Extended life due to pump design
- Available with ATEX approval
Fields of application
- Shipping
- Industry
- Construction
- Waste water management
- Emergency pump units
- Irrigation
- Agriculture
- Horticulture
Complete package designed & built by BBA Pumps
- Complete in-house design & production
- Over 60 years of experience in the market
- Extensive testing facility in-house
- Contemporary & functional design
- Durable & eco-friendly materials
- Custom builds available
After sales service & product support
- Single supplier for parts, spares & accessories
- Dedicated customer help-desk (24h service)
- Dedicated service department in-house
- Global parts distribution network
- Optional global on-site servicing
- Extensive training options available (technical & commercial), on-site or in-house
BBA centrifugal pump
- Model: B85 BVGMC
- Max. flow: 90 m3/hour
- Max. head: 16 mwc
- Free passage: 40 mm
- Pump speed. 1450 rpm
- Connections: 3ʺ BSP
Electric motor
- Power: 5.5 kW – 4 pole
- Voltage: 400/690 V
- Frequency: 50 Hz
- Mounting: B3/B14A, IP55, ISO F
- Assembly: Monobloc
Materials
- Pump casing: Cast iron GG20 – 0.6020
- Wear plate: Cast iron GG20 – 0.6020
- Impeller: Cast iron GG40 – 0.6040
- Shaft seal: Mechanical seal
- Seal faces: Sic / Sic / Viton
- Pump shaft: Steel C45 – 1.1191
- Gaskets: NBR / paper
