Schubert & Salzer Control Systems GmbH

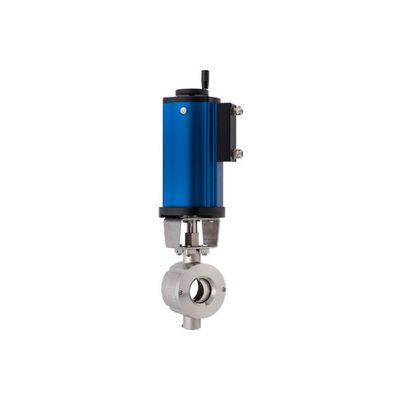

Schubert & Salzer - Model 4032 -Electrically Operated Control Valve
The ball sector valve type 4032 with high-resolution motor actuator providing over 8,000 steps of resolution in 90° of travel. Developed as a basis weight control valve for paper production, this high-precision control valve is also used in other industries where the highest demands are placed on control quality and positioning accuracy.
Most popular related searches
control valve
electric actuator
electric control valve
ball valve
weight indicator
actuated valve
valve actuator
electric actuator valve
electric valve
valve operator
Material
- Stainless steel 1.4408 or 1.4404
Body variants
- Stainless steel 1.4408
Actuator variants
- electrical control actuator
Delivery variants
- Valves without actuator, without standard mounting kit
- Vhigh-resolution electrical control actuator
- Size: DN 25 - DN 250
- Pressure:
- DN25 - DN50: PN40, ANSI#300, ANSI#150
- DN65 - DN100: PN25, ANSI#150
- DN125 - DN250: PN16, ANSI#150
- Material: Stainless steel 1.4408 / 1.4404
- Temperature: Media temperatur: -40 °C up to 220 °C depending on the sealings
- Connection : Wafer type design
- Actuator : Control actuators
- S1500 24VDC, S2000 24VDC, Papyros 100 - 230 VAC
- Actuator variants : Electrical actuator with about 8200 steps/90°
- Electrical actuator with about 1500 steps/90°
- Electrical actuator with about 2000 steps/90°
- Application : Fluids, suspensions as well as gases, also contaminated, abrasive or pasty.
- Input signal : 4 - 20 mA, step-signal Profibus, Modbus
- Connection : Wafer type design
- Actuator : Control actuators
- S1500 24VDC, S2000 24VDC, Papyros 100 - 230 VAC
- Actuator variants : Electrical actuator with about 8200 steps/90°
- Electrical actuator with about 1500 steps/90°
- Electrical actuator with about 2000 steps/90°
- Application : Fluids, suspensions as well as gases, also contaminated, abrasive or pasty.
- Input signal : 4 - 20 mA, step-signal Profibus, Modbus
