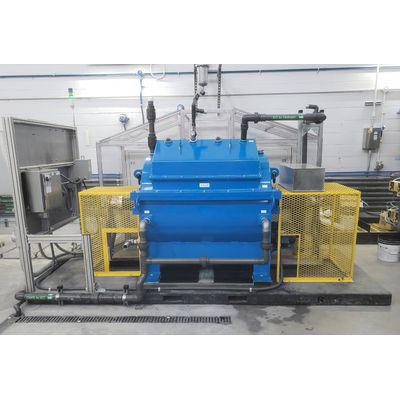

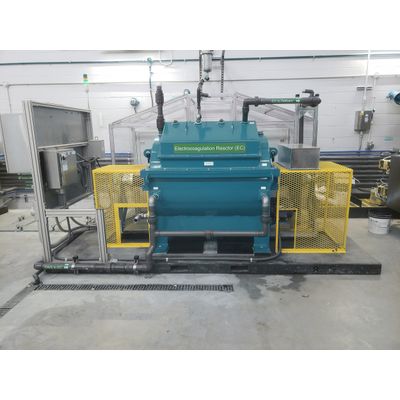

Avivid TurboCoag - Electrocoagulation Reactor System
Avivid Global Water provides advanced water purification via its patented TurboCoag®; technology to treat industrial water contaminated with emulsified oils, heavy metals, suspended solids, and microorganisms. Avivid provides TurboCoag®; reactors and parts for wastewater treatment, customized water treatment design services, installation, integration, remote monitoring, and self-service training or maintenance contracts.- Standard models from 0.1 to 200 GPM
- Small footprint minimizes floor space requirements
- Heavy duty steel construction
- Controllable throughput
- Large top-access hatch
- Continuous water treatment
- Self-cleaning system
- Passivation-free anode
- Sludge-free reactor
- Low maintenance – two-hour anode replacement
- Efficient removal of multiple contaminants
- Kills bacteria, molds, spores and viruses
- Higher level of suspended solids handled
- Strong flocculant is easily filtered / quickly settled
- Modular, scalable solutions for mobile or fixed install
- Choice of metals for sacrificial anodes enables cost-effective treatment and optimization of contaminant removal
- Landfill leachate
- Acid mine drainage
- Produced oil water
- Arsenic contamination
- Power plant blowdown
- Industrial wastewater
- Agricultural waste streams
- Food and beverage processing wastewater
High efficiency, compact, scalable, and mobile!
TurboCoag® is an innovative Tesla pump with patented rotating electrodes. These electrodes are energized with an electrical potential that causes current to flow through the fluid to be treated, dissolving the anodes into reactive anions into the water which binds to contaminants, forming a strong floc. The influent cycles repeatedly within the chamber increasing average dwell time in the reactor. The effluent is processed via conventional water settling or filtration technologies as required by the specific application. TurboCoag® offers better process control, a smaller footprint, liquid flow control, and is scalable. AVIVID`s electrochemistry presents a cost-effective and advantaged alternative to chemical water treatment via its patented electrocoagulation (EC) reactors. The rotating anode cartridge design solves the fundamental problems of EC applications by preventing anode fouling and internal sludge buildup. Design life of the replaceable cartridge is 15 to 60 days depending upon influent water quality, flow rates, and water discharge requirements.
TurboCoag® reduces waste and decreases OPEX for clients by replacing chemicals in the treatment of contaminated wastewater.
You can dive deeper into electrocoagulation, our co-founder’s research, and applications of our technology on our resource page. You can also check out our Frequently Asked Questions page for more information.
The TurboCoag™ system produces 30-70% less waste sludge when compared to traditional chemical treatment processes. The sludge passes the standard Toxicity Characteristic Leaching Procedure (TCLP) analysis and can be disposed of in a conventional landfill
The treatment process acts as a biocide, killing harmful microorganisms, while sequestering heavy metals and soluble organic compounds. Treated water can frequently be used with no further processing
The choice of metals for sacrificial anodes enables cost-effective treatment and optimization of contaminant removal.
Avivid`s patented wastewater treatment solution meets the demands of customers that need to reduce pollution abatement costs, comply with EPA regulations, and reduce water consumption/waste in response to the growing demand in the water market and quickly diminishing water resources.
We identify your specific water treatment goals:
- Desired effluent water quality
- Capital
- Performance Cost Plans
You collect a representative sample of your water or data and send it to us for analysis (business non-disclosure strategies will apply here).
We offer guidance during proper testing technique and shipping options if needed.
Turbocoag® Treatment of SamplesReviewed water samples are checked in and undergo Avivid`s treatment process.
Third-Party TestingWe send the treated samples to a third-party facility to test for the required parameters as directed by the client.
Final ReportingWe release a final report that includes:
- Third-party results
- Overview of the project
- Treatment method applied
- Water Data Tables
- Photographs as evidence of process and results
Our cutting-edge electrocoagulation equipment:
- Eliminates heavy metals efficiently
- Removes many species that chemical coagulation cannot eliminate
- Breaks stable emulsions and suspensions
- Kills bacteria, molds, spores, and viruses
- Removes fats, oil, grease, and other complex organics
- Non hazardous treatment protects operators and the environment
- Reduces waste sludge creates which decreases OPEX
- Solves issues with legacy electrocoagulation: passivation of electrodes and sludge buildup
Here are key abilities of our patented technology:
- Commercial models flowrate from 25 to 200 GPM per reactor
- Controllable throughput
- Continuous water treatment
- Passivation-free anodes, aluminum, or iron
- Higher level of suspended solids handled
- Efficient removal of multiple contaminants
- Kills bacteria, molds, spores and viruses
- Strong flocculant is easily filtered / quickly settled
- Modular, scalable solutions for mobile or fixed installation
- Heavy duty steel construction
- Top-access clam shell design
- Self-cleaning system
- Sludge-free reactor
- Low maintenance – anode replacement under 2 hours!
- Small footprint minimizes floor space requirements
