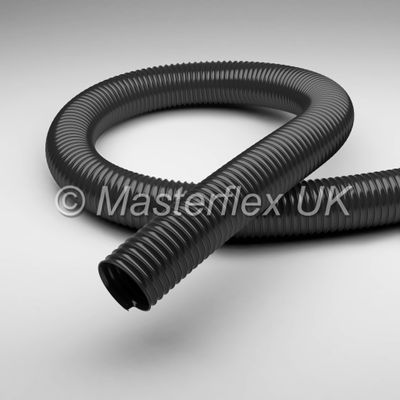

Masterflex Master - Model PUR L-F EL -Electroconductive, Polyurethane, Suction & Transportation Hose

Material

• spiral: spring steel wire
• wall: electrically conductive polyurethane
• wall thickness: between spirals approx. 0.5

Applications

• suction/extraction of paper and textile fibres
• danger zones, which require electrically conductive hoses
• transport of fine-grained particles, such as dust and powder
• suction & transport hose for abrasive solids, liquids and gases
• protective hose against mechanical wear
• oil mist extraction/suction

Properties

• Master PUR L-F EL is surface resistance RO < 103 Ohm
• approved acc. to TRGS 727 and ATEX 2014/34 EU. Details according to the certificate
• halogen-free
• light
• very good flexibility
• smallest bending radii
• optimum flow characteristics
• highly abrasion-resistant
• good resistance to chemicals, oil and fuel
• generally good UV and ozone resistance
• according to DIN 26057 type II

Temperature Range

• -40°C to +90°C
• peaks to +125°C

• Maximum Temperature: 70 °C
• Minimum Wall Thickness: 0.5 mm
• Diameter Range: 50-300 mm
