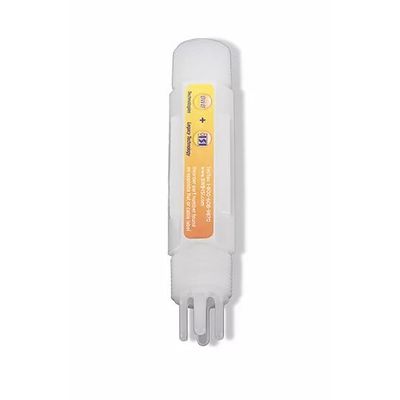

BWB+ISI - Model OPA640-C111 -Electrode Adapter 12mm Electrode to ¾ Threaded Entry

• Adapts standard 12mm x 120mm sensors with PG13.5 threaded cap to 3/4” or 1” NPT process connection
• Constructed of chemically resistant Kynar™ (PVDF)
• Guard protects tip of sensor from damage during handling and harsh process conditions
• Replaceable Viton® O-rings

PVDF body, Viton® Seal

• 1” NPT thread or 3/4” NPT thread, PG13.5 internal thread for connection of electrode

• 21°C at 10 bar (70°F at 150 psig) to 140°C at 2 bar
• (285°F at 30psig) on a sliding scale
