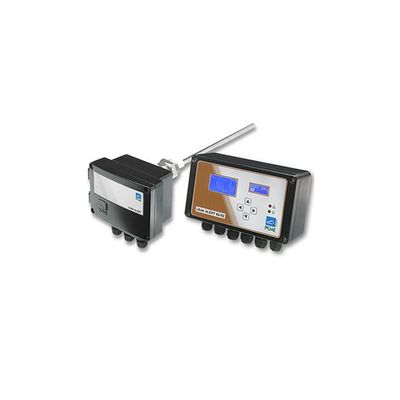

ENVEA - Model PCME LEAK ALERT 65-02 -ElectroDynamic Filter Dust/Leak Monitor

• Reliable monitoring of leaking and broken bags in dust collectors
• Sensor configured remotly via controller
• Manual sensor Drift Checks (zero and span)
• Probe Check (Insulator Short-Circuit Check) option for improved data integrity
• Digital display and optional graphical display to view live data and monitor bag cleaning cycle
• Reduces filter maintenance intervals, process down-time and filter costs

• Stacks after bag filters, cartridge filters, cyclones
• Variable velocities within range 4-30m/s (typical bagfilter velocity ranges), constant velocity required outside this range

Typical Applications:

• Incineraton
• Metals (eg Steel/Aluminium)
• Minerals (eg Cement/Gypsum)
• Chemicals (eg Detergent / Ti02)
• Food (eg Milk Powder / Tobbacco)
• Power (eg Boilers/Biomass)

• Measured parameters: Dust
• Technology: ElectroDynamic® Advanced Probe Electrification
• Measurement/Monitoring capability: 0-500 mg/m³*
• Stack/Duct diameter suitability: up to 6m
• Flue gas temperature: up to 400°C
• Baghouse: YES
• Cartridge Filter: YES
• Ceramic Filter: /
• Coalescent Filter: YES
• Cyclone: YES
• Electrostatic Precipitator (ESP): /
• Wet Electrostatic Precipitator (WESP): /
• Wet Scrubber: /
• Sensor variants: Stainless Steel
• Fully insulated PTFE coated
• QA checks: YES

• Monitoring capability: 0-500 mg/m3
• Sensor Variants: 316 Stainless Steel (standard) / Fully insulated PTFE coated (option)
• Stack Temperature Ranges: 0-250°C standard, up to 400°C option
• Functionality and QA Checks: Drift checks (zero and span), Probe short circuit check option
• Output: Optional RS232, RS485 (Modbus) 2 x Digital Alarm and 4/20mA
• Air Purge: option

• US EPA MACT Compliant BLD
• Ex Zone 2, 20
