Geemblue - Electrolytic Cell

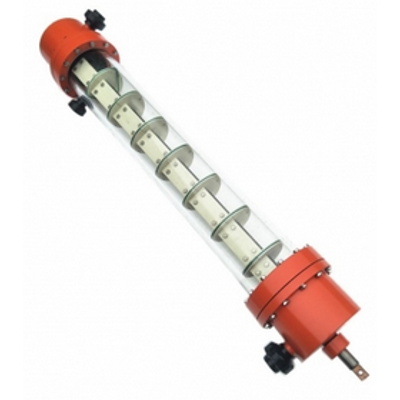

Electrolytic cell is the most important part for chlorination system, it is key component of generating sodium hypochlorite solution by brine electrolysis
Transparent design of electrolyzer tube: which can real time observe the electrolysis process and the electrodes surface scaling condition so as to confirm the pickling period
Complex structure：Complex electrode connection mode, the whole structure less fittings, reduced the heat yield on fitting, as well greatly reduce the production of sodium hypochlorite salt consumption and power consumption, plays a positive role in reducing by-product.
TA1 titanium electrode, the anode is covered by ruthenium-iridium oxide fine nano coating, which is up to 20 layers with coating thickness 20um, ensure more than 5 years service life
Bipolar electrode connection mode, reduced the heat yield, as well greatly reduced the production of sodium hypochlorite salt consumption and power consumption, plays a positive role in reducing by-product
- Chlorine Capacity: 100g ~ 25kg/h
- Chlorine evolution potential <1.13V
- Current density > 1800 A/m2
- Enhanced life time > 100 h
