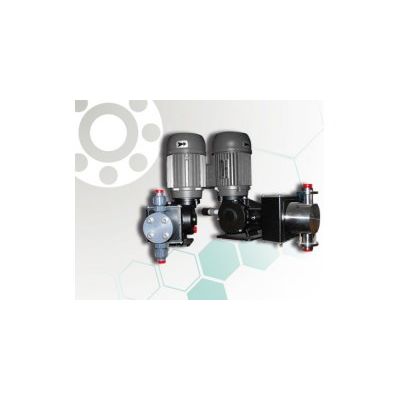

Injecta - Model TP.25 Piston Version -Electromagnetic Dosing Pumps

These pumps are plunger piston metering pumps featuring a spring return stroke in an alluminium housing with oil bath Each pumpis equipped with manual flow adjustment and can be equipped with an electric actuator which accepts a 4÷20 mA or inverter. SS316 or PVC pump head. SS316 or ceramic piston. STROKE 25 mm. 40÷1000 lt/h max flow rate. 20 bar max pressure. 58-78-116 fixed frequency. 25÷89 piston diameters. 0,25/0,37/0,55/0,75 kW standard IP55 motors.
