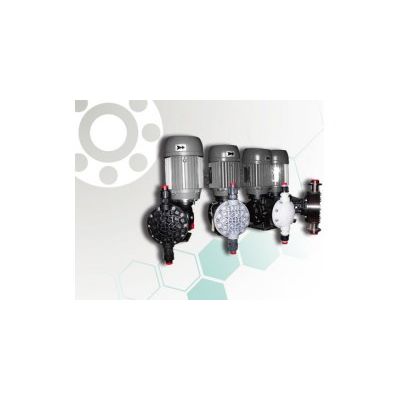

Injecta - Model TM.2-4-6 Direct Diaphragm Version -Electromagnetic Dosing Pumps

These pumps are plunger piston metering pumps featuring a spring return stroke in an alluminium housing with oil bath. Each pumpis equipped with manual flow adjustment and can be equipped with an electric actuator which accepts a 4÷20 ma or inverter. SS316, PP, PVDF or PVC pump head. PTFE diaphragm. Stroke 2-4-6 mm. 5,5÷460 lt/h max flow rate. 10 bar max pressure. 58-78-116 fixed frequency. 65÷165 diaphragm diameters. 0,18/0,25/0,37 kW standard IP55 motors.
