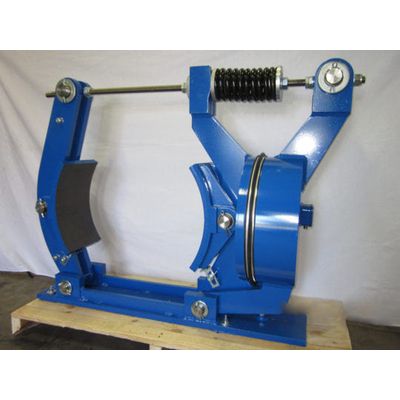

Hindon - Model LAM 30 inch -Electromagnetic Drum Brake
The LAM 30″ is a spring applied, electromagnetically released industrial drum brake. This electromagnetic brake fits brake drums with dimensions in imperial units (inches) and is designed according to steel mill standards (AISE N.11-63.120). The LAM brake is therefore an ideal “bolt in” replacement when upgrading existing braking systems in a steel mill environment. This brake is available in both 400 cycle/hour and 600 cycle/hour configurations. While commonly configured with shunts connected, this brake is also available in series connection. Hindon provides comprehensive support for LAM brakes including repair services and full engineering, technical, and application support.
Name: LAM 30″
Type: Drum
Actuation: Electromagnetic Solenoid Released
Disc Dia - A (mm): 762
Weight (kg): 730
F (mm): 330
G (mm): 48
J (mm): 560
Drum Dia (mm): 762
Torque (N-m)- Shunt 1 Hour Duty: 12450
Torque (N-m)- 8 Hour Duty: 9350
Power (W)- Shunt 1 Hour Duty: 980
Power (W)- 8 Hour Duty: 735
Drum Width (mm): 362
Shoe Width (mm): 356
A1 (mm): 1465
A2 (mm): 1280
A3 (mm): 510
A4 (mm): 490
B (mm): 130
C (mm): 550
D1 (mm): 762
D3 (mm): 39.5
H (mm): 527
H1 (mm): 1120
H2 (mm): 1120
I (mm): 482
K (mm): 381
