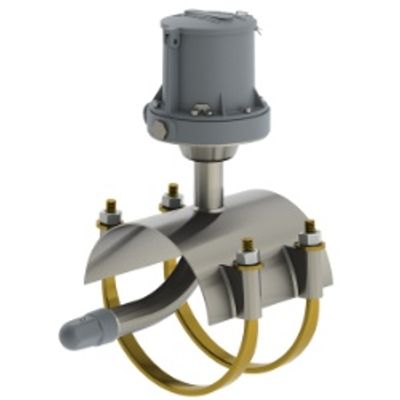

McCrometer - Model McMag2000 -Electromagnetic Flow Meter
The McMag 2000 provides farmers and irrigators an affordable and easy-to-read mag meter with minimal maintenance and little to no downtime. As the only mag meter on the market with a price tag comparable to a propeller meter, the McMag 2000 has a low cost of ownership without compromising durability and accuracy. The McMag 2000 is portable, an efficient purchase for users with multiple irrigation lines. This mag’s familiar saddle-style form and streamlined functionality allows for in-field programmability and serviceability.
- McMag 2000 can be installed easily in-field, minimizing downtime
- Modular design allows each piece to be independently replaced and self-serviced
- McMag 2000 has a low cost of ownership offering mag meter technology for the price of a propeller meter
- The saddle style design and DIY converter programmability allow for portability
McMag 2000 can be installed easily in-field, minimizing downtime
Modular design allows each piece to be independently replaced and self-serviced
McMag 2000 has a low cost of ownership offering mag meter technology for the price of a propeller meter
The saddle style design and DIY converter programmability allow for portability
- Accuracy: ±2% of reading guaranteed throughout full range; ±1% over reduced range; calibrated in our NIST traceable test facilities. Repeatability of 0.25% or better.
- Fitting Type: Retrofit available using Mc® Propeller saddle. Portable saddle-style design
- IP Rating: IP67
- Line size: 4” to 12”
- Power: DC power optional
- Register: Standard instantaneous flowrate indicator and nine-digit straight-reading totalizer
- Hermetically sealed within a die-cast aluminum case
- Includes a domed acrylic lens and a hinged lens cover with locking hasp
- Pulse-out available for system integration IP67 to protect from harsh environments
- DC power optional
- Requirements: With flow straightener: 1.5D upstream, 1D downstream
- Without flow straightener: 5D upstream, 2D downstream
- Temperature Range: (Standard Construction) 160°F constant.
