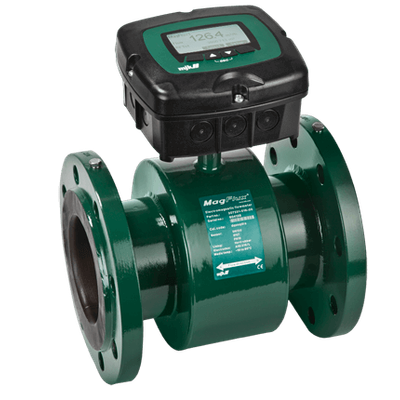

MJK - Model MagFlux 7200 -Electromagnetic Flowmeter
The magflux electromagnetic flowmeter from mjk has high stability and great accuracy which makes the unit suitable for various flow measurements in water. The magflux® 7200 sensor is produced with a hard rubber liner, which is why it is often used to measure flow in electrically conductive liquids in filled, closed pipes.
MagFlux electromagnetic flowmeter is an instrument for measuring fluid flow using Faraday`s electromagnetic induction law, and therefore the fluid must be electrically conductive. The MagFlux® 7200 series comes with EN, AS, ANSI, AWWA and KS flanges in ISO standard installation lengths. With MagFlux® 7200 you get high stability and great accuracy in all your water measurements.
With electromagnetic flowmeters from MJK, you are guaranteed accurate measurements - regardless of whether it is flow measurement within wastewater, drinking water, aquaculture or industry. If you want to know more about flow measurement, or if you have questions about our other measuring instruments, you are always more than welcome to contact our qualified employees.
-
Supports IP 68 installations
-
Large sensor range,
DN 20-1400 / 3/4" to 48"
-
Small built-in lengths
-
Velocity range from
0.2 - 10 m/s / 0.6 - 30 ft./s
-
Full bore sensors
-
MID Certificate from
DN25 to DN400, for metering of cold water.
- Mounting, Flanges: EN-1092-1 / ANSI B 16.5 / AWWA C207-01 / AS 4087 / AS 2129 / KS B 1503
- Material, Lining: Hard Rubber
- Built-in length: Standard length according to ISO 13359
- Accuracy: Better than ± 0,25 %
- Materials, Housing: Carbon steel, optional stainless steel AISI 304/316
- Material, Flanges: Carbon steel, optional stainless steel
- Material, Electrodes: Steel 1,4571 / AISI 316 TI, optional Hastelloy, platinium, and titanium
